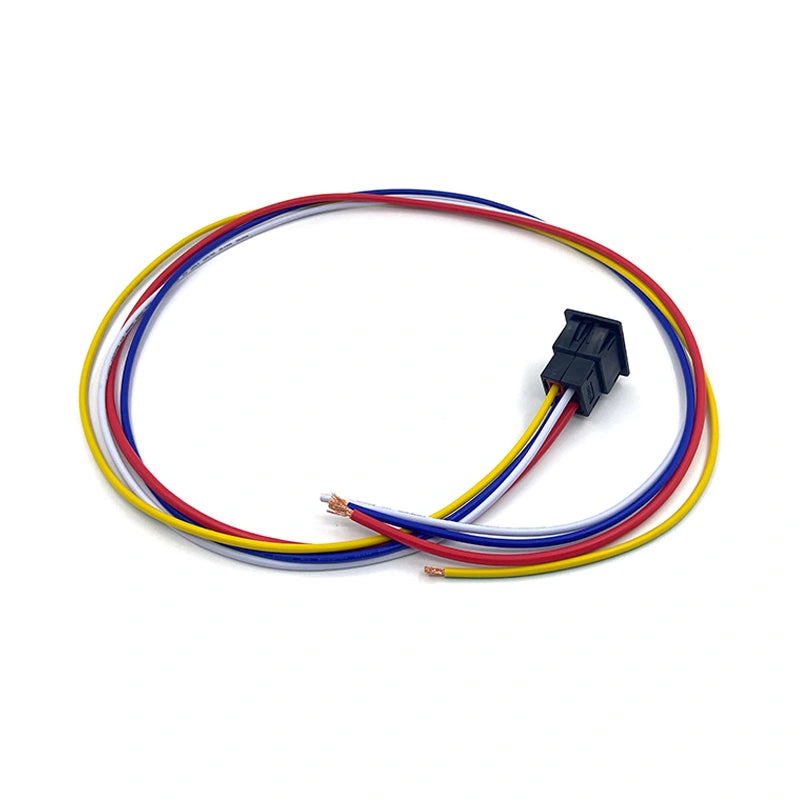

Whatsminer M53 Hydro Miner Power Cable Female Socket

Whatsminer Hydro Power Cable Female Socket – High-Current Connector for M53, M33S, M63 & M66 Series

This female power cable socket is designed for Whatsminer hydro and immersion miners including the M34S+, M33S, M53, M53S, M63, M63S and M66S. It serves as the PSU-side power connector, carrying the full output current from the power supply unit to the miner's control and hashboard power distribution. The connector is rated for the high sustained currents these hydro miners draw — typically 40–60 A per power rail — and features a secure locking mechanism that prevents accidental disconnection in rack-mounted or immersion tank installations.

Common Failure Scenarios

Power connectors on hydro miners face a unique combination of stresses: high current causes resistive heating at the contact interface, while the sealed cooling environment limits natural convective heat dissipation around the connector. Over time, the contact surfaces can oxidise or develop micro-arcing pits, increasing resistance and creating a positive feedback loop of heat and further degradation. Symptoms include a warm or discoloured connector housing, intermittent power drops that cause the miner to restart, or in severe cases a melted connector that no longer seats properly. In immersion-cooled setups, coolant residue on the contacts can accelerate corrosion if the connector is not properly sealed during maintenance.

Replacement Procedure

Power off the miner and disconnect the PSU cable. Inspect the old socket for signs of melting, darkened plastic or pitted contacts — if the mating surface on the PSU-side plug is also damaged, replace both ends to ensure a low-resistance connection. The female socket terminates onto the miner's power input wires — cut the old socket off, strip the wire ends, crimp the new socket's terminals, and insert them into the housing according to the pinout diagram. After assembly, verify with a multimeter that each pin has continuity to its corresponding wire and that there is no short between adjacent pins. Reconnect the PSU, power on, and confirm stable voltage at the miner's input under full hash-rate load.

This socket is compatible across the full range of Whatsminer hydro platforms from the M33S through to the M66S. If your setup uses the SA30 oil-immersion power interface rather than the standard hydro connector, check the male plug compatibility before ordering.

Whatsminer Hydro Power Socket Specifications

Related Whatsminer Hydro Power Connectors & Cables

• Whatsminer SA30 Hydro Male Plug – Oil Immersion Power Cord
• Whatsminer SA30 Female Socket – Oil Immersion PSU
• Whatsminer Hydro Data Cable 16-Pin – M33S M53 M63
• Whatsminer Hydro Single-Head Power Cable Plug – M53

Outfitting a hydro mining facility? Contact us at contact@lys-sz.com — we stock all Whatsminer hydro power connectors, data cables and replacement parts.

Worldwide shipping from our Shenzhen warehouse.
