JSN-SR04 Ultrasonic Ranging Module - High Precision Distance Measurement

JSN-SR04T Waterproof Ultrasonic Ranging Module | High-Precision 40 kHz Ultrasonic Distance Measurement Sensor with Low Power Consumption and Anti-Interference Design for Arduino, Parking Sensors, Liquid Level Monitoring and Industrial Distance Sensing

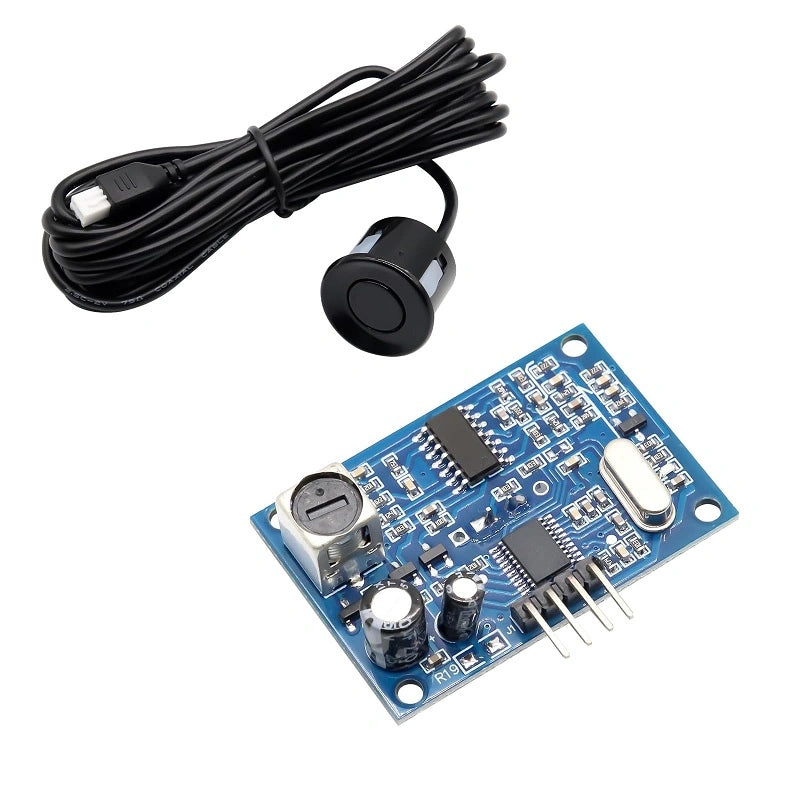

The JSN-SR04T module is a reliable solution for distance measurement, offering stability and accuracy. Compatible with various open-source hardware platforms like Arduino, this module excels in applications requiring precise distance calculations. With its waterproof design, low power consumption, and anti-interference capabilities, the JSN-SR04T is ideal for security systems, parking sensors, liquid level monitoring, and industrial control applications.

The waterproof construction is what sets the JSN-SR04T apart from the entry-level HC-SR04 module — the sealed transducer head allows outdoor use, rainfall exposure, and partial submersion in liquid-level applications. 5V DC operating voltage works directly from Arduino / ESP32 / Raspberry Pi rails. 40 kHz ultrasonic emission frequency matches standard industry practice for distance ranging. 5 mA static / 30 mA working current enables battery-friendly designs.

Typical Applications

• Parking sensors — automotive and parking-lot applications, weatherproof exterior installation.
• Liquid level monitoring — water tank level, fuel level, industrial liquid storage.
• Outdoor distance measurement — weather-exposed installations.
• Industrial control — proximity sensing, position feedback in industrial automation.
• Security systems — perimeter detection, obstacle / approach monitoring.
• Robotics navigation — obstacle avoidance, parking-assist for autonomous vehicles.

JSN-SR04T Specifications

FAQ — JSN-SR04T Ultrasonic Sensor

Q: JSN-SR04T vs HC-SR04 — which to choose?
A: HC-SR04 is the basic Arduino ultrasonic module — cheaper, exposed transducers, indoor-only. JSN-SR04T is the waterproof upgrade — sealed transducer, outdoor capable, partial submersion OK for level sensing. For outdoor / liquid / harsh environments, pick JSN-SR04T. For indoor projects on a budget, HC-SR04 is fine.

Q: What's the typical detection range?
A: Typical effective range is 20 cm to 4-5 meters for hard reflective surfaces. Soft / absorbent surfaces (foam, dense fabric) reduce range. Temperature affects speed of sound — high-precision applications should compensate for ambient temperature in software.

Q: Can I submerge the entire module in water?
A: The transducer head is waterproof but the PCB control board is NOT fully sealed. Mount the PCB in a dry enclosure with the transducer cable extending to the wet measurement point. Don't fully submerge the module.

Q: Bulk pricing for OEM production runs?
A: Yes — email contact@lys-sz.com with your quantity for tier pricing on JSN-SR04T modules for parking-sensor / liquid-level / industrial production deployments.
