Whatsminer CB4 V10 H6 Control Board Repair Guide & Components List

Whatsminer CB4 V10 H6 Control Board Repair Guide & Components List (2026 Update)

The Whatsminer CB4 V10 is MicroBT's H6-based control board — the brain of every M20S, M21S, M30, M30S, M30S+, M30S++, M31S+, M32, M50, and M53 series miner. Built around the Allwinner H6 (CV200-OS) quad-core ARM Cortex-A53 CPU, with DDR3 memory and NAND flash, the CB4 V10 handles pool connectivity, hashboard communication, firmware execution, and the miner's web interface. This guide covers the 15 most vulnerable components on the board, the architecture differences from hashboard repair, and the full components list with direct sourcing links — paired with our companion Whatsminer M50 hashboard repair guide for full-miner repair coverage.

Why CB4 V10 H6 Control Board Repair Matters in 2026

The CB4 V10 covers an enormous range of MicroBT's deployed fleet — from the legacy M20S through the modern M50 series. A failed control board prevents the entire miner from operating regardless of hashboard health, so even a fleet with healthy hashboards can be brought down by control-board failures alone. Component-level repair of the CB4 V10 is significantly cheaper than full board replacement, and the H6 CPU plus DDR3 memory and NAND flash are all replaceable BGA / SMD parts with available repair stock.

CB4 V10 Control Board Architecture at a Glance

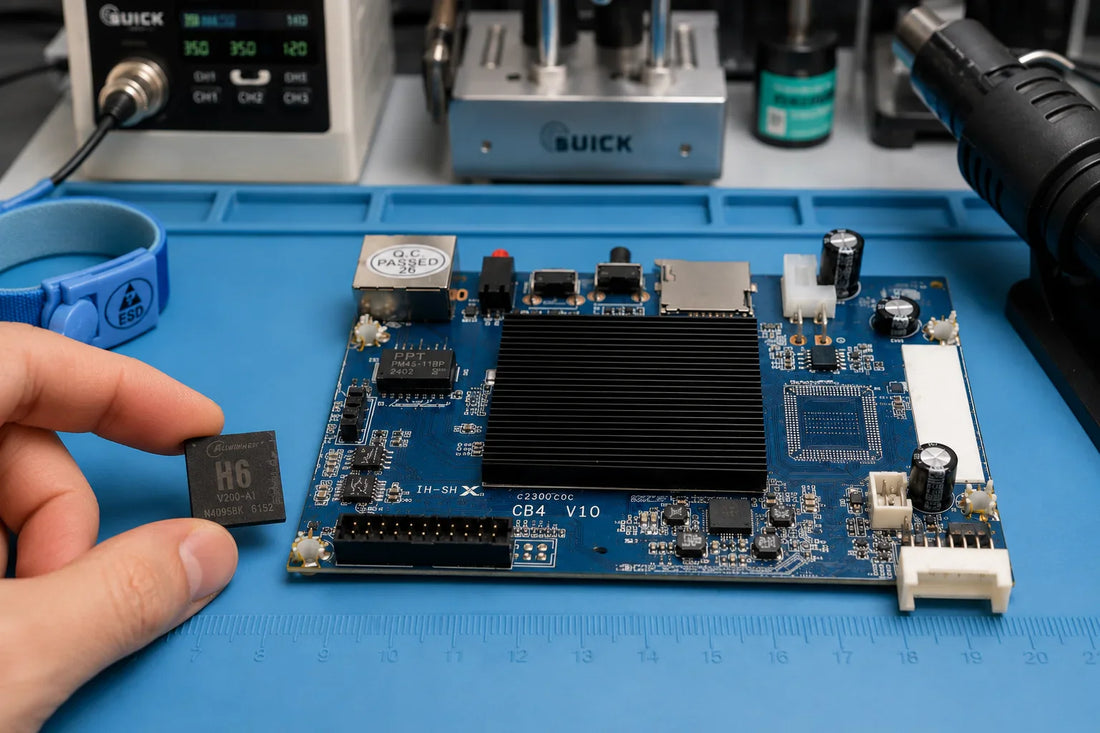

The CB4 V10 is built around the H6 CV200-OS SoC — an Allwinner H6 quad-core ARM Cortex-A53 processor with ARMv8 64-bit and 32-bit execution, 512KB shared L2 cache, NEON SIMD instructions, and TrustZone security. The H6 is a BGA device, which means replacement requires a proper rework station with BGA reballing capability rather than just a soldering iron.

Supporting the CPU, the board carries K4B2G1646F-BCNB DDR3 memory for runtime data and TC58NVG0S3ETAI0 1Gbit NAND flash for firmware storage. Power delivery uses the RS3236-1.8YF5 (LB18) 1.8V LDO for CPU/memory rails, with auxiliary switching handled by the SI2301 (A1SHB) P-channel MOSFET (20V / 2.8A). I/O multiplexing runs through the 74HC08PW quad 2-input AND gate, and the A8038 IC handles a control-board-specific function unique to the CB4 V10.

Compatible Whatsminer models

The CB4 V10 H6 control board is used across the following Whatsminer models:

• Legacy series: M20S, M21S
• M30 family: M30, M30S, M30S+, M30S++
• M31 family: M31S+
• M32 family: M32
• M50 family: M50, M50S, M50S+, M50S++ (paired with the KF1968-family hashboards)
• M53 series: hydro variants in the late M5x line

This wide compatibility makes the CB4 V10 the highest-priority control board to keep in repair-bench stock for any operator running a mixed MicroBT fleet. Note the CB4 V10 is distinct from the older CB2 V8 (used on M10 series, H3 CPU) and the newer CB6 V10 (used on M60 series and some hydro models, based on the Allwinner H616 SoC).

Most Common CB4 V10 Failure Modes

• No boot, no network, no web interface — typically a failed H6 CV200-OS CPU. Common causes are power surge damage, thermal stress without proper heatsinking, and solder joint fatigue under thermal cycling.
• Boots but doesn't enumerate hashboards — usually a degraded K4B2G1646F-BCNB DDR3 memory (random crashes during firmware load) or a corrupted TC58NVG0S3ETAI0 NAND flash (failed firmware update or wear-out).
• Power-on but immediate shutdown — failed RS3236-1.8YF5 1.8V LDO or shorted MOSFET on the supply rails. Check rail impedances before re-powering.
• Intermittent hashboard chain dropouts traced to the control side — degraded 74HC08PW AND gate on the I/O multiplexer, or failed level conversion on the data-cable interface.
• No fan control / abnormal fan readings — check the 5569 Female 4-pin 4.2mm header on the fan-control side and the surrounding passive components.
• Random voltage glitches under load — usually a degraded 470µF 25V electrolytic capacitor that no longer holds rail voltage during transient draw.
• Failed power-management sequence — investigate the A8038 IC, which handles a CB4 V10–specific power-management or sequencing function.

Critical Components — Function & Failure Behaviour

H6 CV200-OS CPU — the brain

The H6 CV200-OS is the Allwinner H6 quad-core ARM Cortex-A53 processor that runs the miner firmware. Built on ARMv8 with 64-bit and 32-bit execution support, 512KB shared L2 cache, NEON SIMD instructions, and TrustZone security. As a BGA device, it requires hot-air reflow at controlled temperatures (preheat 150-180°C) and BGA reballing for replacement. A failed H6 takes the entire miner offline — no network, no web interface, no hashboard communication.

K4B2G1646F-BCNB DDR3 Memory

The K4B2G1646F-BCNB is the DDR3 runtime memory on the CB4 V10. Failures typically present as crashes during firmware load, kernel panics in the serial log, or randomly bad hashboard enumeration. Like the H6 CPU, this is a BGA device requiring proper rework equipment.

TC58NVG0S3ETAI0 NAND Flash

The TC58NVG0S3ETAI0 is a Toshiba 1Gbit SLC NAND flash that stores the miner firmware. Wear-out from repeated firmware re-flash operations, or corruption from a power cut during the OTA update process, are the most common causes of failure. Re-flashing via SD card or USB recovery is the first repair step before chip replacement.

RS3236-1.8YF5 (LB18) LDO

The RS3236-1.8YF5 is the 1.8V LDO that supplies the H6 CPU and DDR3 memory rails. A failed LDO produces unstable supply that crashes the CPU and corrupts memory operations. Check the 1.8V rail output with a multimeter before chasing software issues.

SI2301 (A1SHB) MOSFET

The SI2301 is a P-channel 20V / 2.8A MOSFET used for switching on the auxiliary power-delivery stages. A shorted SI2301 typically produces a hard short on its drain-source that prevents the board from coming up.

74HC08PW Quad AND Gate

The 74HC08PW is a quad 2-input AND gate used for I/O signal multiplexing — including hashboard chain enable signals. A degraded AND gate typically causes a specific hashboard chain to not enumerate even when both the hashboard and the H6 CPU are healthy.

A8038 IC — CB4 V10–specific

The A8038 IC handles a CB4 V10–specific power-management or sequencing function. This component is dedicated to this control board family and is not directly substitutable with generic equivalents — when this position fails, source the specific A8038 marking.

Inductors and protection components

The CD54 4.7µH (4R7) and CD32 2.2µH (2R2) SMD inductors handle energy storage on the switching-supply stages. The BZT52C15 (WJ) Zener diode and the BAT46WH (DB) single planar Schottky barrier diode handle voltage clamping and protection. The MMBT3904 (1AM) NPN transistor (the original article labelled this a diode — it's actually a bipolar transistor) handles small-signal switching on the protection stage.

Temperature sensor and decoupling

The S75 digital temperature sensor monitors the control board temperature. The 470µF 25V electrolytic capacitor handles bulk decoupling on the input power rail.

Whatsminer CB4 V10 Control Board Components List

The table below lists every component LYS Shenzhen stocks for CB4 V10 H6 control board repair. Each entry links directly to the corresponding part page — contact us at contact@lys-sz.com for bulk pricing or for complete CB4 V10 control board replacement units.

Required Repair Tools & Consumables

• BGA rework station with controlled preheat (150-180°C) — mandatory for H6 CPU and DDR3 memory replacement. Hot-air gun alone is not sufficient for these BGA devices.
• Whatsminer H6 BGA reballing stencil — dedicated stencil for the H6 CV200-OS chip footprint.
• Constant-temperature soldering iron at 350-380°C with a pointed tip for SMT work on the supporting passives.
• Hot-air rework station at 350-400°C for QFN / SOIC chip removal.
• Solder paste M705 grade, no-clean flux, board washing fluid with anhydrous alcohol.
• Tin balls 0.3 mm and 0.4 mm diameter for BGA reballing (the H6 uses 0.4 mm typically).
• Multimeter (Fluke recommended) for voltage rail verification.
• Bench power supply (5V / 12V) for stand-alone control-board powering during diagnosis.
• SD card with the firmware re-flash image for NAND recovery testing.
• Serial console adapter (USB-to-TTL 3.3V) for boot-log capture during diagnosis.

Diagnostic and Repair Workflow — 3-Step CB4 V10 Procedure

The CB4 V10 repair workflow runs as three sequential steps: appearance inspection, short-circuit check without power, then voltage-rail verification with power. The key chip positions on the CB4 V10 to know by reference are U1 (the H6 CV200-OS main CPU), U2 (the 1.8V LDO supplying CPU / DDR3), U3 (the upstream 5V regulator), and U5 (the power-management / sequencing IC, often the A8038 marking). Common burn-out positions are Top-side near U3, Top-side near U2, and the back-side power-stage area.

Step 1 — Appearance inspection

1. Front and back component check — look for fallen connectors, lifted inductors, cracked capacitors, or any physically displaced parts. Replace damaged parts first before deeper diagnosis.
2. Burnt chip check — inspect Top-A (U3 area), Top-B (U2 area), and the back-side C area for blackening or scorching. Burnt chips need replacement before continuing.
3. Clean the board — dust accumulation on top and back side can cause intermittent shorts and false readings. Wipe with circuit-board cleaning solution or anhydrous alcohol.

Step 2 — Short-circuit check without power

Set the multimeter to buzzer / continuity mode and test the 7 short-circuit reference points (labelled A through G on the standard CB4 V10 silkscreen). Each short location maps to a specific candidate chip — when a short is found, remove the suspect chip and re-test the same point to confirm before replacement.

• Short at point A → almost always U3 damaged (5V regulator). Replace U3 directly.
• Short at point B → could be U3, U2, or U5. Remove U3 first and re-test; if short clears, U3 is the culprit. Otherwise remove U2 and re-test; if clear, U2 is at fault. Otherwise remove U5.
• Short at point C → remove inductor L2 and test point I or H. If still shorted at I, U5 is damaged. If still shorted at H, U1 (H6 CPU) is damaged.
• Short at point D → remove inductor L3 and test points J / K. J short = U5 damaged. K short = U1 damaged.
• Short at point E → remove inductor L4 and test points L / M. L short = U5 damaged. M short = U1 damaged.
• Short at point F → remove inductor L1 and test points O / N. O short = U5 damaged. N short = U1 damaged.
• Short at point G → remove inductor L2 and re-test G. Still shorted = U1 damaged. Cleared = U2 damaged.

Step 3 — Voltage rail verification with power

Once no shorts remain, power up the control board with the PSU connected. Place a foam insulation pad under the board during testing to prevent stray shorts. Test the key voltage points:

1. Test point G should read 1.8V (acceptable range 1.71V to 1.89V — ±5%). If the voltage is far from 1.8V (commonly reads 0V, 3.4V, 5V, or floats), U2 (the 1.8V LDO) is damaged and needs replacement.
2. If point G reads 1.8V, flash a fresh firmware image via SD card recovery and check whether the board boots normally. Failure to boot at this stage points to H6 CPU (U1) or DDR3 / NAND issues.
3. U2 / U3 isolation test — power the board with the PSU, set the multimeter to voltage mode. Test U2 input pin against the SD card socket ground: expect 5V (4.75V to 5.25V is acceptable). If not 5V, U3 (5V regulator) is damaged — replace U3. If 5V is present, test U2 output (left pin near CP59) against the SD card socket ground: expect 1.8V (1.71V to 1.89V acceptable). If far from 1.8V, U2 itself is failed — replace U2.

BGA rework for H6 CPU (U1) and DDR3 memory replacement

1. Capture the serial console boot log with a USB-to-TTL 3.3V adapter on the H6's UART before any BGA work — the boot output tells you exactly where the CPU stops (bootloader fault, kernel load fault from DDR3 or NAND, or userspace from firmware corruption).
2. Try NAND re-flash via SD card first — many "dead" control boards are simply corrupted firmware after a power cut during update.
3. If re-flash fails or no UART output at all, suspect the H6 CPU or DDR3 memory. Verify the 1.8V supply to both chips first (see Step 3 above).
4. Visual inspection of BGA solder balls under microscope — solder joint fatigue from thermal cycling is a common H6 failure mode that can sometimes be resolved with a controlled re-flow before full chip replacement.
5. For H6 or DDR3 BGA replacement: preheat the board to 150-180°C, lift the failed chip with controlled hot air, clean and reball with the appropriate stencil, place the new chip, and reflow with a controlled BGA profile.
6. Test the repaired board by connecting to a known-good miner chassis and running the standard boot sequence. Watch for full boot, network discovery, hashboard enumeration, and pool connection.
7. Run 24-hour soak test with a hashboard attached to confirm stable operation under load.

When Chip-Level Repair Makes More Sense Than Board Replacement

A new CB4 V10 control board costs significantly more than the individual components needed for chip-level repair — especially if the failure is a single LDO, MOSFET, or AND gate rather than the H6 CPU itself. For repair shops processing more than a few control boards a month, a small inventory of the H6 CPU, K4B2G1646F DDR3, TC58NVG0S3ETAI0 NAND, RS3236-1.8YF5 LDO, SI2301 MOSFET, and the standard passives covers the majority of repair scenarios.

FAQ — Whatsminer CB4 V10 Control Board Repair

Which Whatsminer models use the CB4 V10 H6 control board?

The CB4 V10 is used on the M20S, M21S, M30, M30S, M30S+, M30S++, M31S+, M32, M50, M50S, M50S+, M50S++, and M53 series. This makes it the highest-priority control board to keep in stock for repair shops handling mixed MicroBT fleets.

What is the H6 CV200-OS CPU?

The H6 CV200-OS is an Allwinner H6 quad-core ARM Cortex-A53 processor with ARMv8 64-bit and 32-bit execution, 512KB shared L2 cache, NEON SIMD instructions, and TrustZone security. It is the main processor on the CB4 V10 control board and handles hashboard communication, pool connectivity, firmware execution, and the miner's web interface.

Can I replace the H6 CPU with just a soldering iron and hot air?

No. The H6 is a BGA device, which means the solder joints are underneath the chip and not accessible from the side. Proper replacement requires a BGA rework station with controlled preheat (150-180°C), a dedicated H6 reballing stencil, and a controlled hot-air reflow profile. Attempting H6 replacement without a BGA station typically results in damaged pads and an unrecoverable board.

What does it mean when a Whatsminer doesn't boot at all (no network, no web interface)?

This usually points to the control board rather than the hashboards. Capture the serial console boot log via the H6's UART. If the H6 doesn't produce any UART output at all, suspect a failed H6 CPU, a failed 1.8V LDO (RS3236-1.8YF5), or a shorted power rail. If the H6 boots but fails to load the kernel, suspect K4B2G1646F DDR3 memory or TC58NVG0S3ETAI0 NAND flash corruption — try a firmware re-flash before chip replacement.

How is the CB4 V10 different from the CB2 V8 and CB6 V10 control boards?

The CB2 V8 is the older H3-based control board used on M10 series miners and some early M20s. The CB6 V10 is the newer H616-based control board used on M60 series and later miners. The CB4 V10 sits in the middle of the lineup with H6 silicon, covering the largest installed-base of Whatsminer units (M20S through M50/M53).

Sourcing CB4 V10 H6 Control Board Parts

LYS Shenzhen stocks every component listed above for the Whatsminer CB4 V10 H6 control board, plus complete replacement control boards for repair shops that need quick-turnaround board swaps. For BGA rework consumables (H6 reballing stencils, 0.4 mm tin balls), for the A8038 specialty IC, or for bulk farm-scale orders on Whatsminer control board parts, contact our team at contact@lys-sz.com — we operate an on-demand sourcing channel for repair components across the full MicroBT control board lineup including CB2 V8 (M10 / H3) and CB6 V10 (M60 / H616) variants.

Worldwide shipping from our Shenzhen warehouse via DHL, FedEx, UPS, and sea freight. DDP shipping available for US and EU customers; case-by-case for other lanes — request a quote with your shipping country for confirmation.
