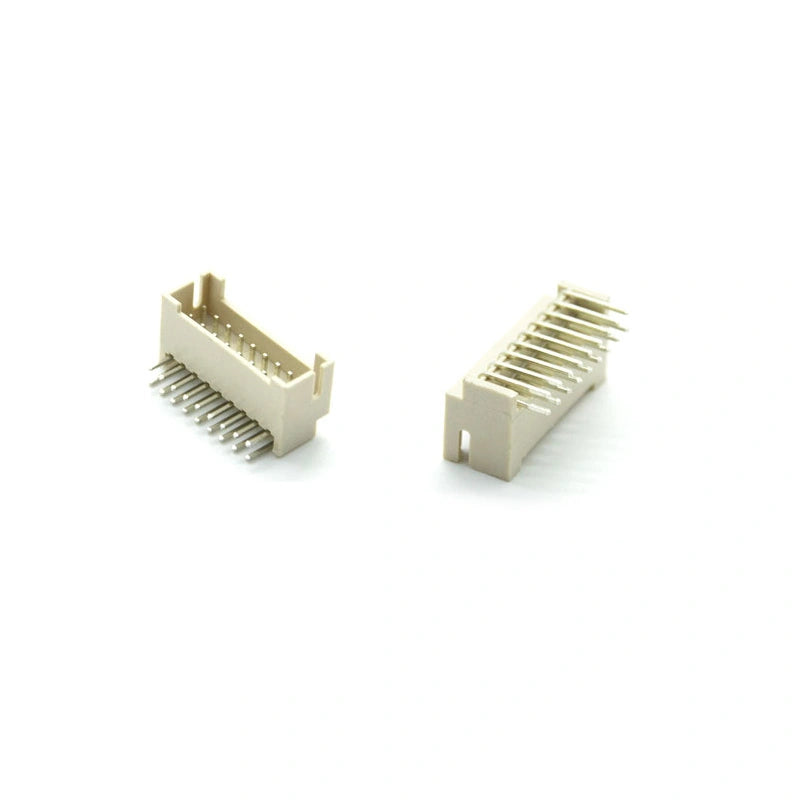

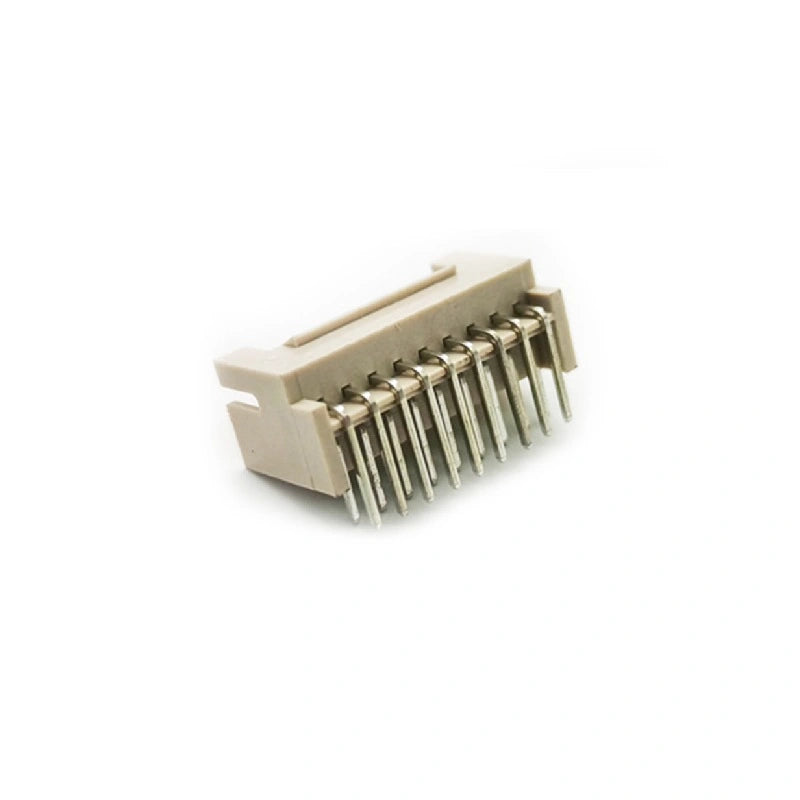

18p Right Angle L type PHB 2.0mm Double Row Data Outlet for Hashboard
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
Efficient Data Transmission - 18p Right Angle Data Outlet for Antminer Innosilicon Hash board
Achieve a reliable and long-lasting connection between your ASIC Miners' Control Boards and Hashboards with the 18p Right Angle PHB 2.0mm Data Outlet. This connector is specifically designed for data cable connections and ensures consistent performance and durability.
Compact Design for Limited Spaces - High-Quality Connector for Reliable Performance
Featuring a double row of 18 pins in a right angle shape, this data outlet provides a secure and worry-free electrical contact. It is constructed using high-quality materials to deliver superior strength and superior quality for reliable connectivity.
18p Right Angle Data Connector Technical Features:
|
Name
|
18p Right Angle PHB 2.0mm Data Outlet
|
|
Connector type
|
PHB 2.0mm
|
|
Pin
|
18 pin
|
|
Row
|
Double row (2 x 9 pin)
|
|
Pin Shape
|
Right Angle
|
|
Condition
|
New
|
|
Stock
|
Yes
|
|
Used for
|
PCBA and Control board
|
Common failure symptoms
- Hashboard fails to enumerate at boot — broken signal continuity through one pin row
- Intermittent chain drops under load — corroded contacts on the data outlet
- Visible bent or pushed-back pin after a chassis drop or transit damage
- Hashboard reports incorrect chip count — partial signal coverage through the outlet
- Solder joint cracks at the through-hole pads after thermal cycling
Frequently asked questions
Is this the same connector used on Antminer S19 hashboards?
The 18-pin PHB 2.0mm right-angle outlet is used on multiple Bitmain hashboard generations. Verify the part on your specific board model — Antminer pin counts and pitches vary between S9 / S19 / S21 family generations.
What gauge wire fits the mating harness?
The mating ribbon is the standard 18-pin signal cable used on Antminer and Innosilicon test fixtures. For the matching cable, see the Bitmain test-fixture 18-pin data cable in related products.
Can I de-solder and reuse the old outlet?
If the pins are not bent or corroded, yes — but a new connector is the safer call when the original failed once.
Do you stock 16-pin or 20-pin variants?
Yes — see the related Whatsminer 14p / 18p signal cable and the Goldshell 18-pin data cable for adjacent pin-count variants.
