1N4007 / M7 SMD Rectifier Diode | 1000V / 1A Replacement for Bitmain APW12 Power Supply Repair

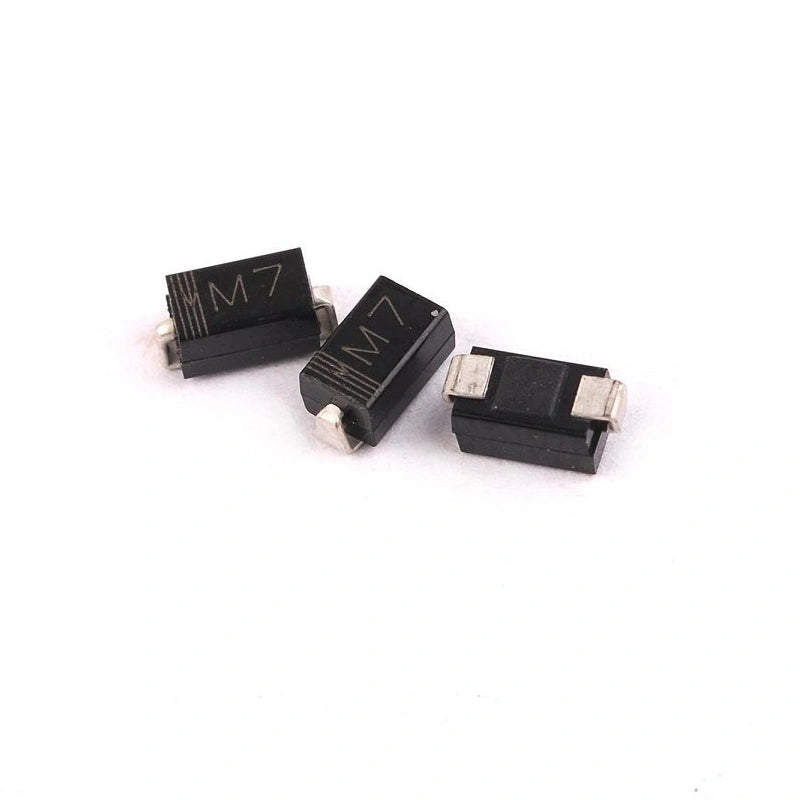

The 1N4007 (silk marking M7) is a 1000V / 1A SMD rectifier diode used across Bitmain APW12 power supply housekeeping rails and snubber networks for mains-frequency rectification and protection. One of the most widely-deployed diode part numbers in mining PSU repair — every APW12 has multiple 1N4007s scattered across the primary and housekeeping sides.

Headline numbers for PSU duty: 1000V withstand voltage with the large PN junction area giving the diode its surge-current capability, 1A average rectified current, and the SMD package (silk marking M7) that's become the industry standard for "1N4007 in surface-mount form". When this diode shorts after a transient, it usually takes the local rail down and the symptom looks like a much more serious failure than it actually is.

When to Replace the 1N4007 / M7

• APW12 housekeeping rail dead — one or more 1N4007s shorted or open after a transient.
• Snubber network ringing on scope — diode no longer absorbing the switching transient.
• Visible damage on the SMD package — burnt or cracked after a fault event.
• Excessive heat on the diode body at normal load — degraded junction, forward drop climbing.
• Repeated PSU resets at boot — failed protection diode allowing transient damage downstream.

1N4007 / M7 Specifications

FAQ — 1N4007 / M7 Rectifier Diode

Q: How do I identify the 1N4007 on the board?

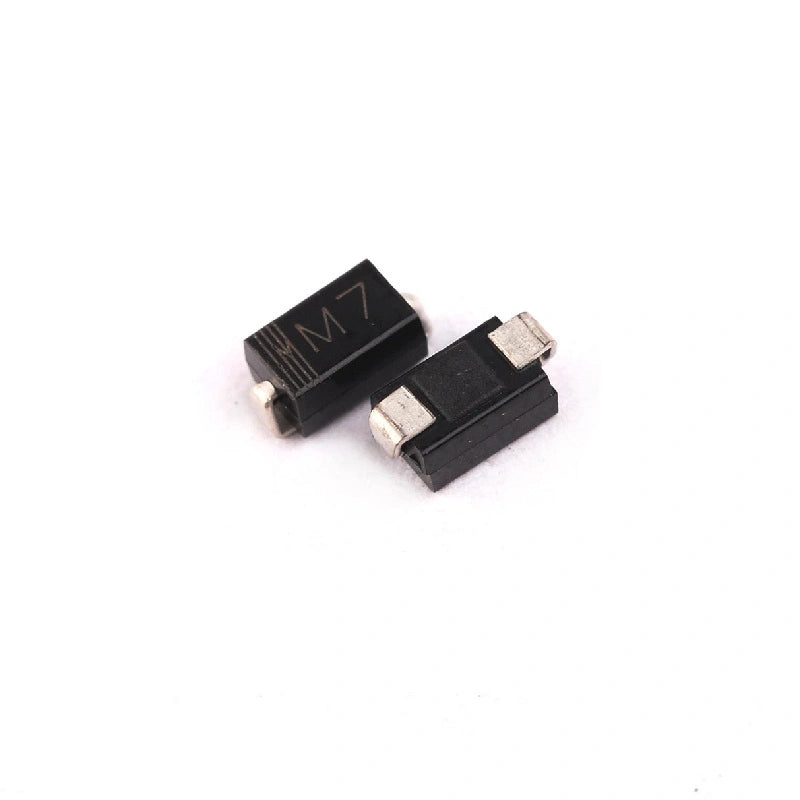

A: Silk marking M7 on the SMD package — that's the abbreviated marking convention for 1N4007 in surface-mount form. The same die in through-hole DO-41 outline is the original 1N4007; the M7 marking is the SMA / SMB SMD variant.

Q: 1A current rating — is that enough for APW12 PSU rails?
A: Depends on where the diode sits. For housekeeping rails and snubber circuits the 1A is plenty. For high-current main-rail rectification, larger parts (e.g. UF4007, GBJ2010 bridge) are used. Match the original part number when ordering — don't substitute "up" to a higher-current diode without checking the surrounding network.

Q: How do I test the diode in-circuit?
A: Power off, isolated from mains. DMM diode-test mode across the diode leads. Healthy reads ~0.7V forward (silicon Vf), OL reverse. Shorted reads 0Ω both directions. Open reads OL both directions.

Q: Bulk pricing for APW12 repair benches?
A: Yes — email contact@lys-sz.com for reel-quantity 1N4007 / M7 pricing.
