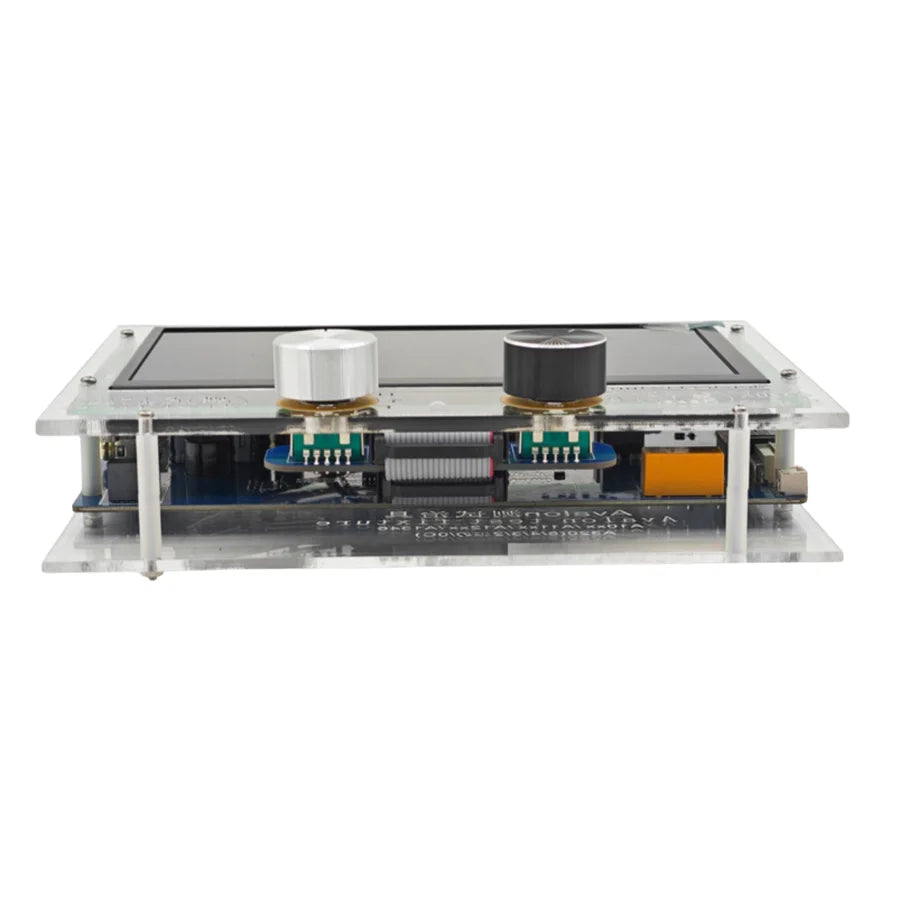

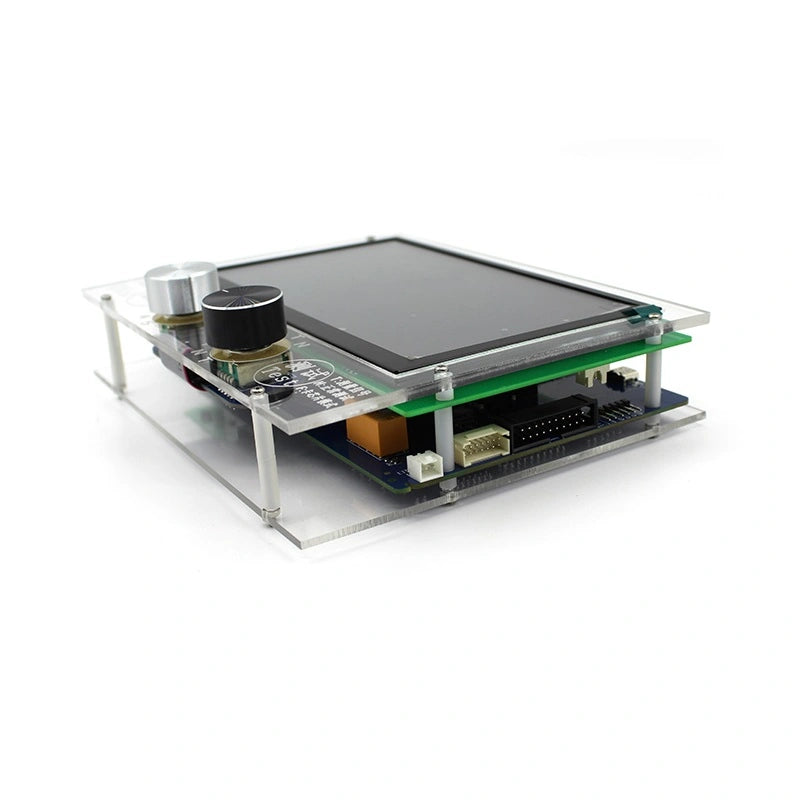

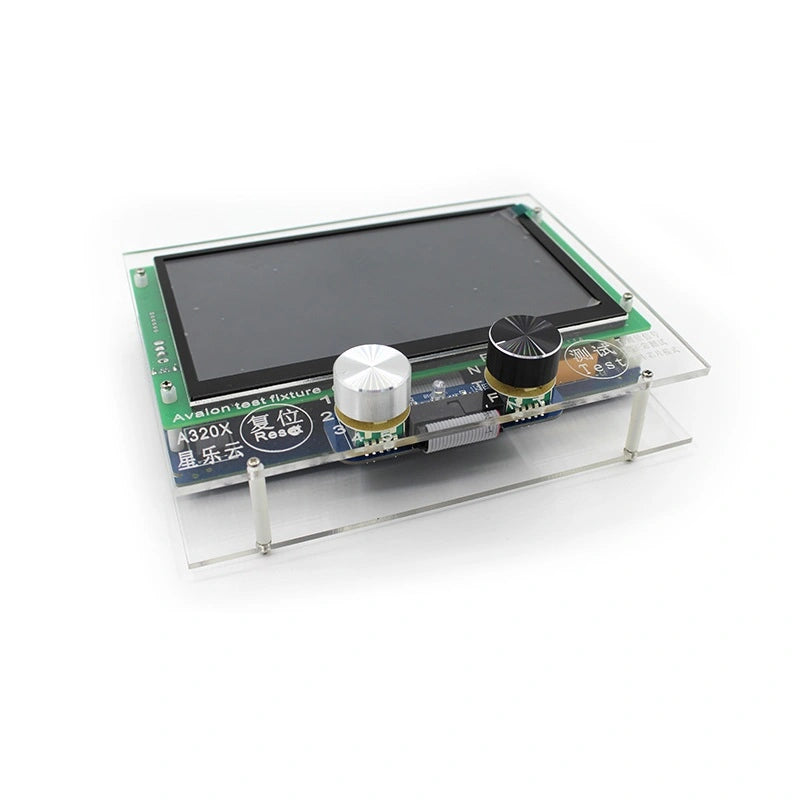

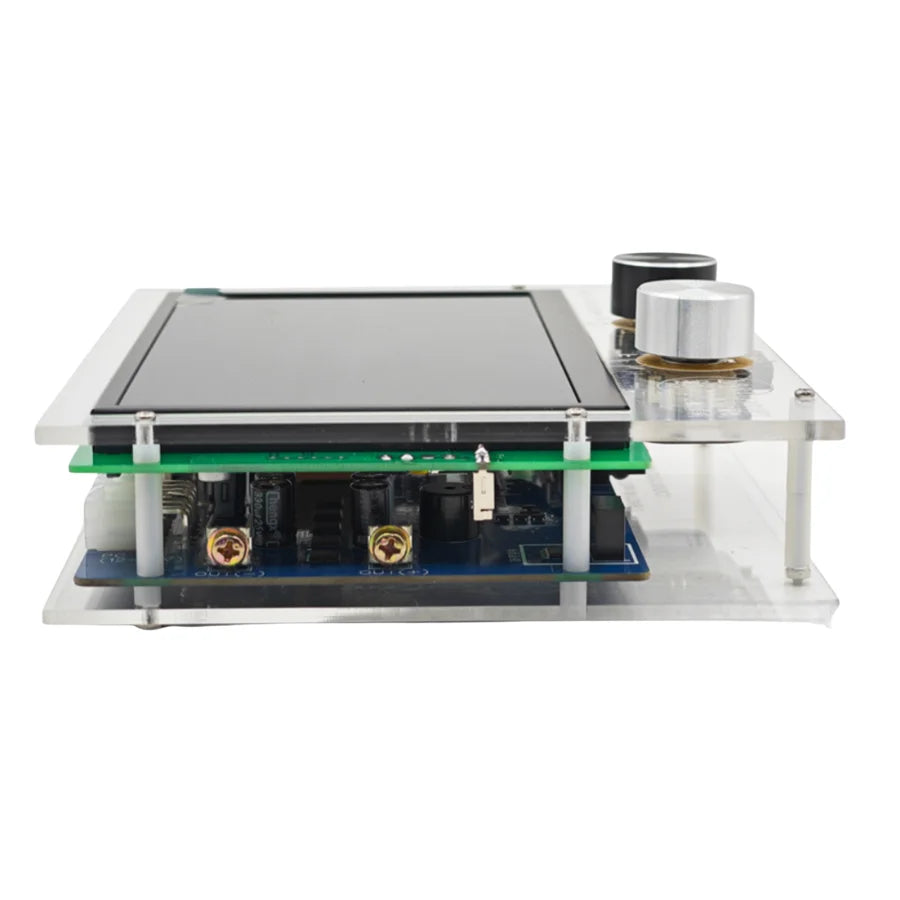

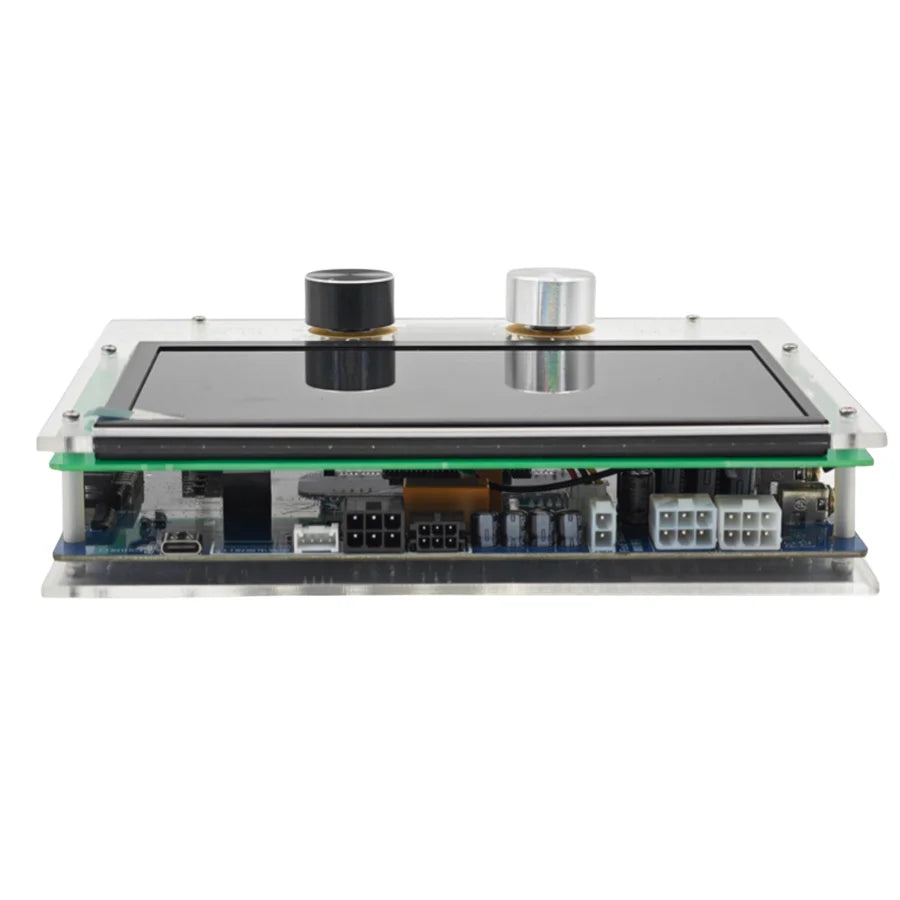

Avalon A320X Multifunction Hash Board ASIC Chips Test Fixture with LCD Screen

Avalon A320X Multifunction Hashboard Test Fixture with LCD Screen

Diagnose and repair Canaan Avalon hashboards faster with the A320X multifunction test fixture. Its built-in LCD display shows fault locations in real time, eliminating guesswork and cutting board-level troubleshooting time dramatically. Compatible with Avalon A10, A11, A12, and A1346 miners and supporting chip models A3205, A3204, A3203, A3202, A3201, A3200, and A3200C.

Four Test Modes for Complete Hashboard Diagnostics

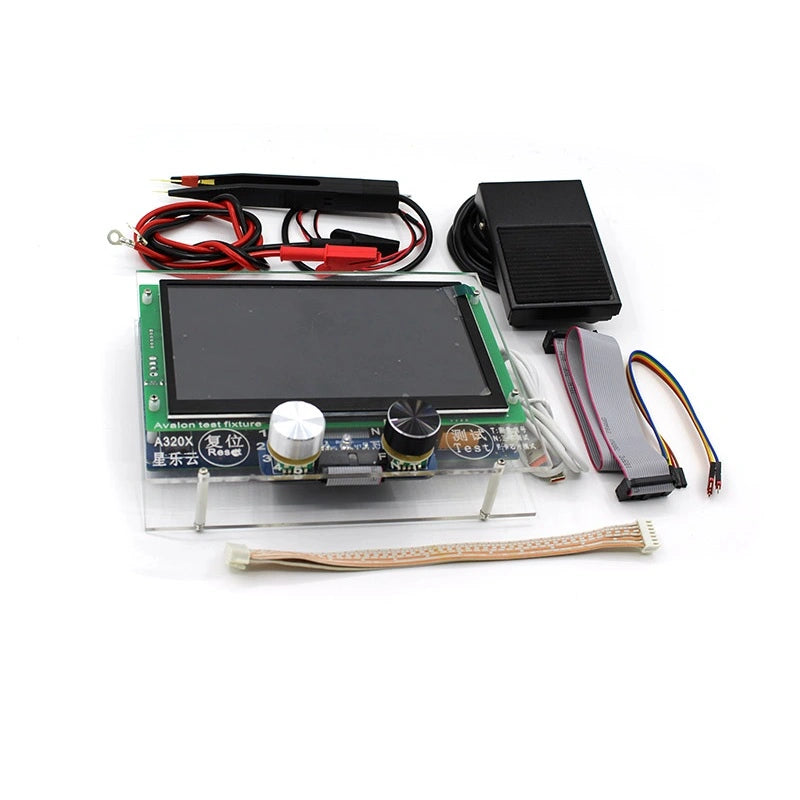

The A320X packs four distinct testing modes into a single bench tool. Burning Control Board mode streamlines the chip-burning process — connect the data cable directly to the control board without manual gear selection. T Measurement Signal mode lets you probe individual sections of a defective board with a multimeter and foot switch for localised fault isolation. N Normal Test mode validates overall hashboard function by running the full chip chain while the foot switch is held. F Short Circuit Chip mode identifies shorted chips by clipping onto the board's D signal line and ground.

Visual Fault Location on the LCD Display

Rather than scrolling through serial logs, the LCD shows which chip position has failed or is drawing abnormal current. This visual feedback reduces maintenance costs by allowing technicians to replace only the bad chip instead of swapping entire boards — critical when servicing large Avalon fleets.

Avalon A320X Test Fixture Specifications
