BA1U 0.8V LDO Chip for Antminer L7 S19xp S21 T21 Hashboard

BA1U 0.8V LDO Regulator – Low-Dropout Chip for Antminer L7, S19XP, S21 & T21 Hashboards

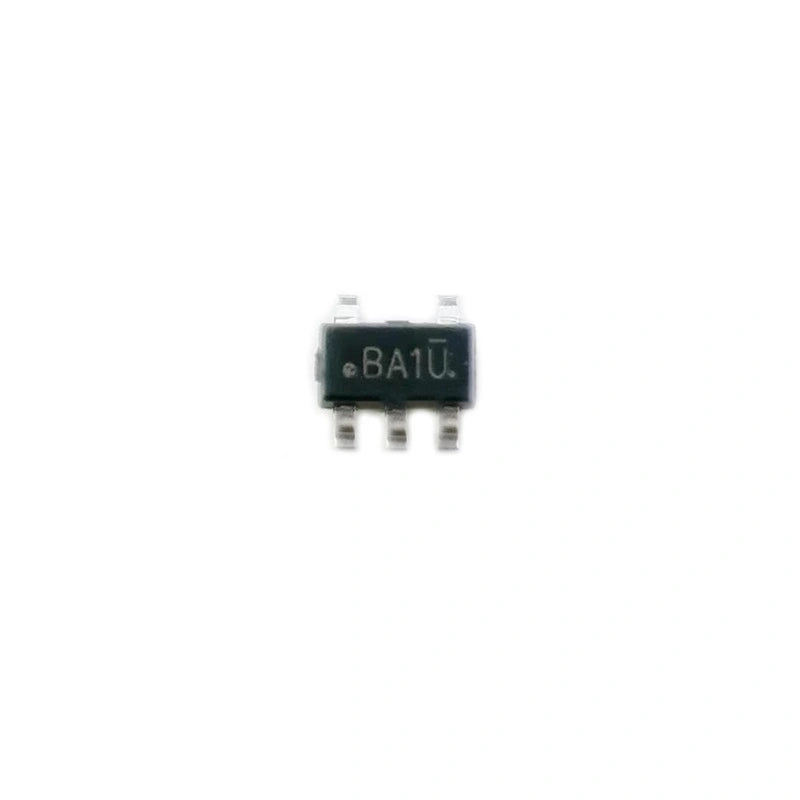

The BA1U is a 0.8 V fixed-output LDO for the low-voltage power distribution circuits on Antminer L7, S19XP, S21, T21 and S19j Pro hashboards. It accepts 1.6–5.5 V input, delivers 500 mA at 0.8 V with 74 dB PSRR at 1 kHz, and includes thermal shutdown and current limiting. The fast output discharge feature prevents latch-up conditions on ASIC chips during power cycling. Often paired with BA2X in Bitmain power distribution designs.

Why LDO Regulators Fail on Hashboards

LDOs on hashboards supply the ASIC chip I/O and logic rails under continuous maximum-current load. Repeated thermal cycling weakens the die-attach solder and bond wires. A failed LDO causes the board to report missing chips, produce abnormal temperature readings, or drop out of detection entirely. Even a slight voltage deviation on the 0.8 V rail can cause communication errors between control board and hashboard.

Replacement Procedure

Remove the hashboard and locate the failed BA1U near the ASIC chip power distribution section. Verify 0 V or out-of-spec output with a multimeter to confirm failure. Desolder with hot air at 300–330 °C, clean pads with solder wick, align the new chip to the silkscreen, and reflow. Verify 0.8 V (±2 %) output on a bench supply, then reinstall the board and confirm full chip detection and normal hash rate in the dashboard.

BA1U LDO Specifications

Related Hashboard LDO Regulators

• DIO7910A08ST5 LDO – Antminer HS3 / S19K Pro / S19XP / S21 / T21
• SGM2036 0.8V LDO – Antminer Hashboard Linear Regulator
• TPS7A1108 0.8V LDO – Avalon 1466 / 1446
• TLV75512 LDO Regulator – Antminer S21 Hydro Hashboard

Stocking LDOs for hashboard repairs? Contact us at contact@lys-sz.com for volume pricing on BA1U and compatible chips.
