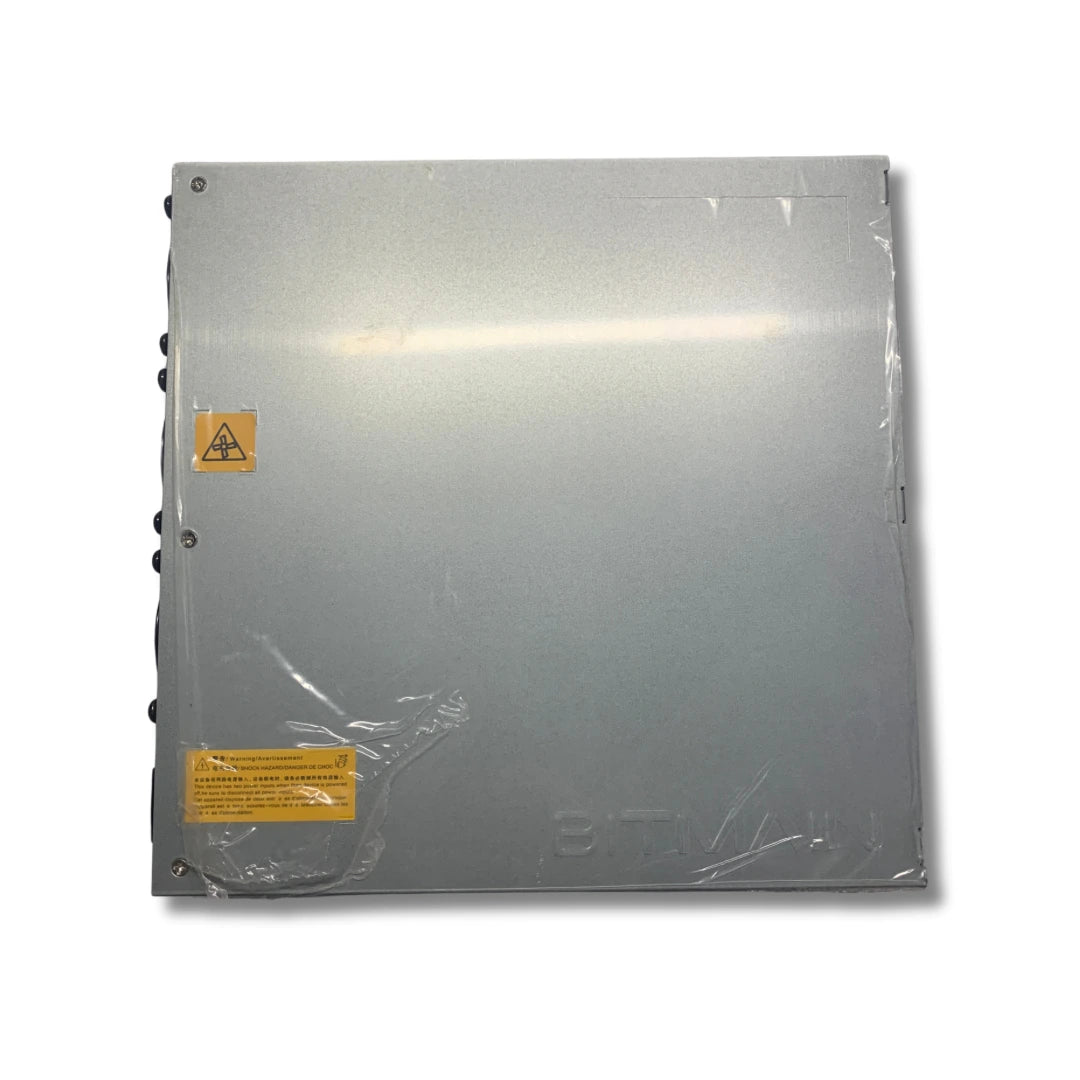

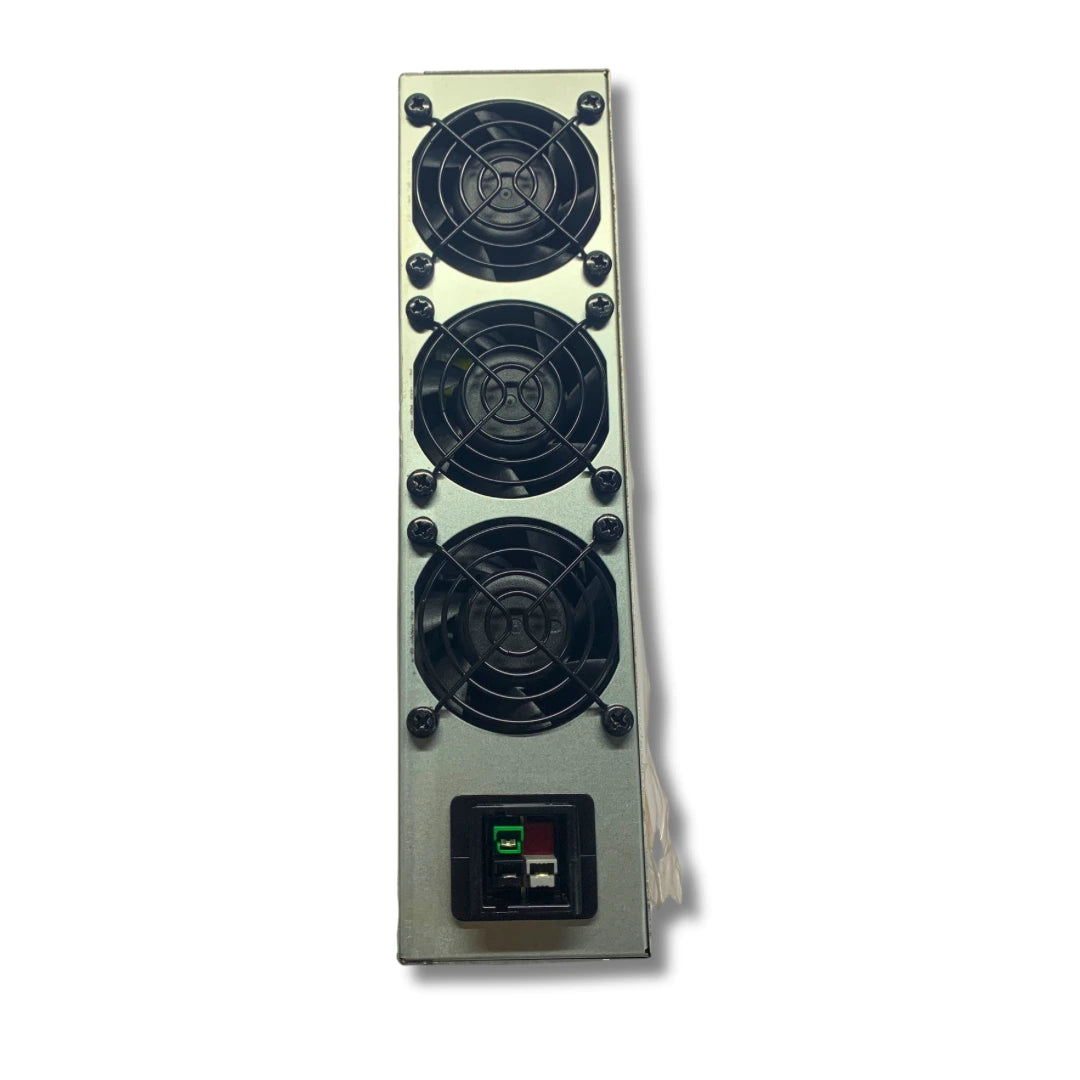

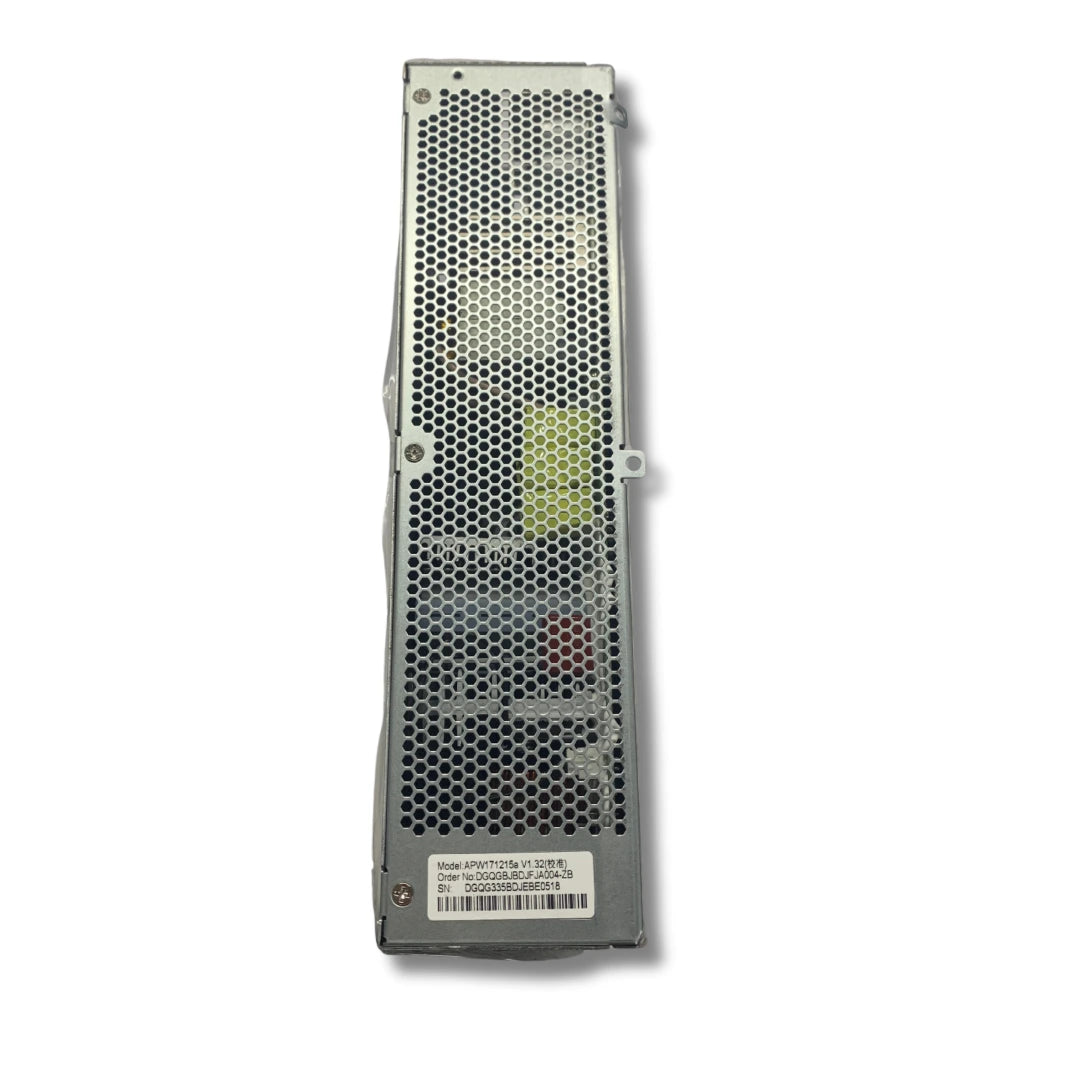

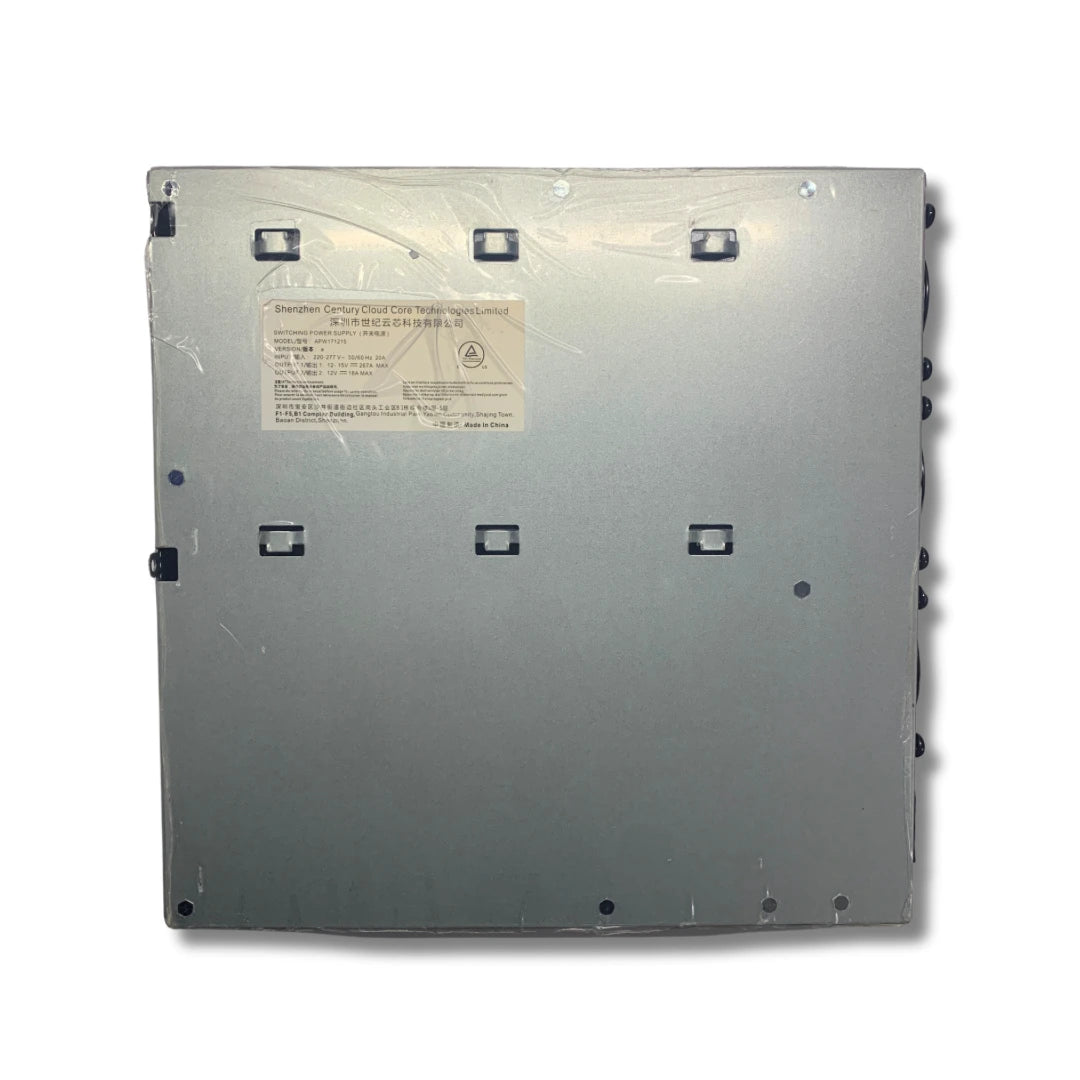

Bitmain Antminer APW17 1215a Power Supply: High-Quality PSU for S21 and S19jXP Miners
Ensure optimal performance and stability for your Antminer S21 and S19jXP miners with the Bitmain Antminer APW17 1215a Power Supply. This new generation switching power supply is designed to meet the specific requirements of air-cooled miners, offering reliable power delivery and efficiency.
Power Your Mining Rig with the Bitmain Antminer APW17 1215a Power Supply
With a DC voltage output range of 12V-15V and a rated output current of 267A, the APW17 APW171215a provides ample power to support your mining operations. It features low ripple and noise levels, maintaining a stable power supply for your equipment. The power interface is tailored for compatibility with the APW12 power supply, requiring a C20 to P13 4 pin power cord for seamless integration.
Bitmain APW17 Technical Features:
| Feature | Specification |
| OUT1 DC Voltage | 12V-15V |
| Rated Current (220V input) | 267A |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <14S |
| Short Circuit Protection | >10mS |
| OUT2 DC Voltage | 12.3V |
| Rated Current (220V input) | 18A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V-12.4V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <10S |
| Short Circuit Protection | >10mS |
| Input Voltage Range | 220-277V AC |
| Frequency Range | 50/60Hz |
| Power Factor | >0.99 (full load) |
| Leakage Current | <4mA (220V 50Hz) |
| Protection | |
| Input low-voltage protection value | 185-195V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 280A-402A (varies under different voltage) |
| Environment | |
| Operating Temperature | -20-40℃ |
| Operating Humidity | 20%-90%RH (non-condensing) |
| Altitude | <2000m |
| Structure | |
| Dimensions | 254.6251.663mm |
| Net Weight | 3.9Kg |
| Cooling System | Forced-air cooling |
| Noise | 45dBA |
Installation and AC wiring
The APW17 accepts a C20 to P13 (4-pin) AC power cord on the input and uses the same 10-pin output harness layout as APW12. Plug the P13 connector into the PSU input, route the C20 end to a 220-240V PDU rated for 16A or higher, and connect all output cables to the miner before powering on. Verify that low-voltage protection (185-195V) and overheat protection are active before commissioning the miner under full load.
Compatibility
Direct fit for Antminer S21 and S19j XP air-cooled SHA-256 miners. Also serves as a tested replacement for APW12 in any S19-series rack that needs higher current headroom. Not designed for hydro models — use APW11 for S19 Hydro / S21 Hydro setups. Ripple, line and load regulation each stay below 1%, with short-circuit, overheat and over-current protection on both output rails.
Common failure symptoms
- PSU fans spin but the miner reports "no power" or stops detecting the PSU
- Repeated reboots under hashboard load while the miner runs fine at idle
- Burnt smell from the PSU enclosure or discolouration on the output connector
- Output voltage stuck below 12V or fluctuating outside the 12-15V window
- Fan inside the PSU rattles, stalls or reads abnormal RPM in the dashboard
Frequently asked questions
Can I use APW17 on a 110V circuit?
No. The APW17 input window is 220-277V AC. The low-voltage protection trips between 185-195V to prevent damage, so a North-American 110V outlet will not bring the PSU online.
Is the APW17 interchangeable with APW12?
The mechanical interface, output harness and AC cord (C20 to P13) are the same. The APW17 supplies higher current to support S21 and S19j XP, which is why it is the recommended upgrade for those models.
Which AC power cord does it need?
A C20 to P13 4-pin AC cord. Use the dedicated cable listed in the related products section for a reliable connection.
Do you ship internationally?
Yes. We ship worldwide from our Shenzhen warehouses, with DDP available for US and EU customers.
