Antminer APW12 PSU Test Fixture for Bitmain APW12-1215 Power Supply Repair

APW12 PSU Test Fixture | Bench Diagnostic Tool for Bitmain APW12-1215 Power Supply Repair (APW121215 a/b/c/d/e Variants)

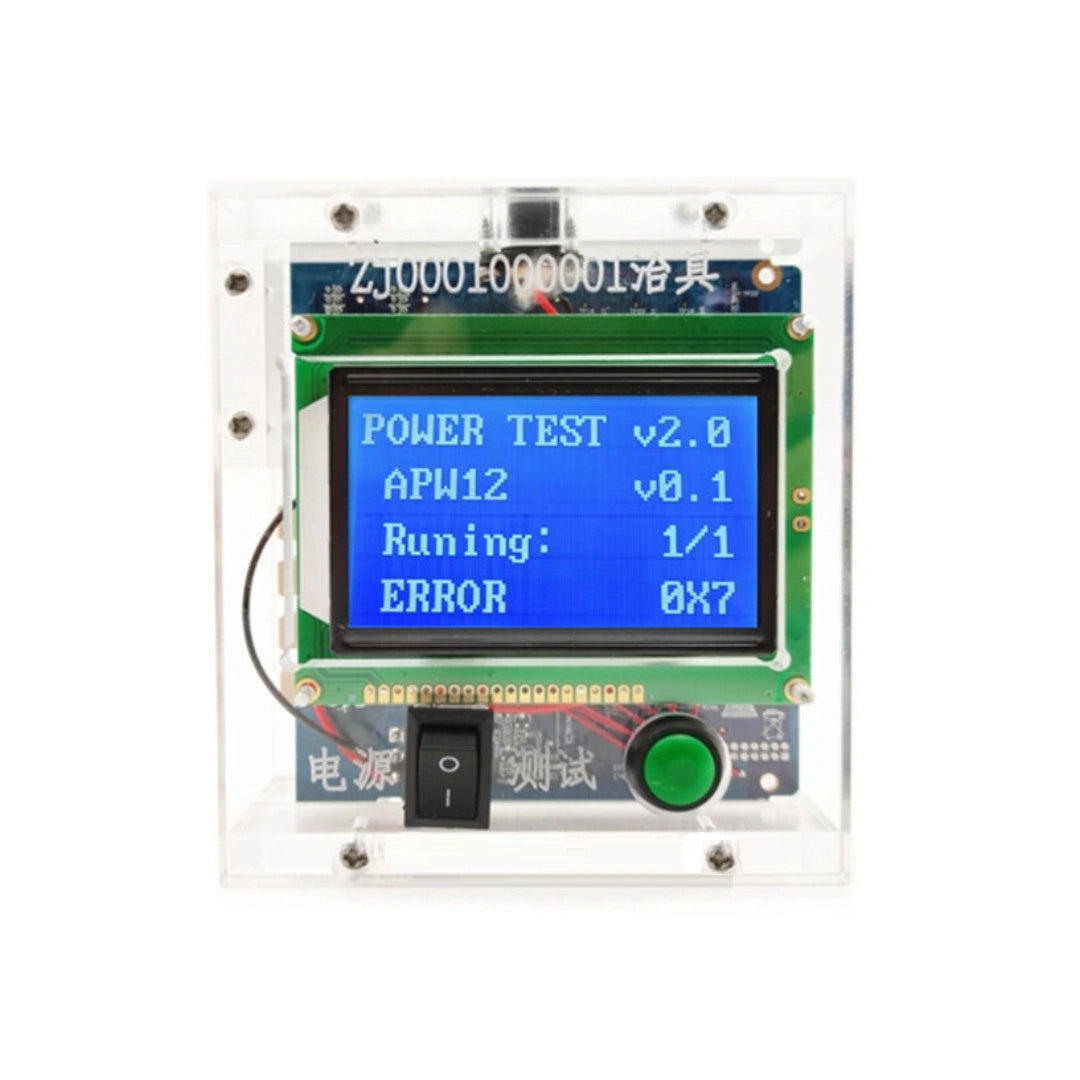

The APW12 PSU Test Fixture is the dedicated bench diagnostic tool for the Bitmain APW12-1215 power supply family. Covers the APW121215a, APW121215b, APW121215c, APW121215d and APW121215e variants with independent voltage detection — connects directly to the PSU, validates output without requiring the miner hash board and control board, and reports pass / fail on the integrated LED display. Eliminates the time waste of swapping a suspect PSU into a known-good miner to find out which side is faulty.

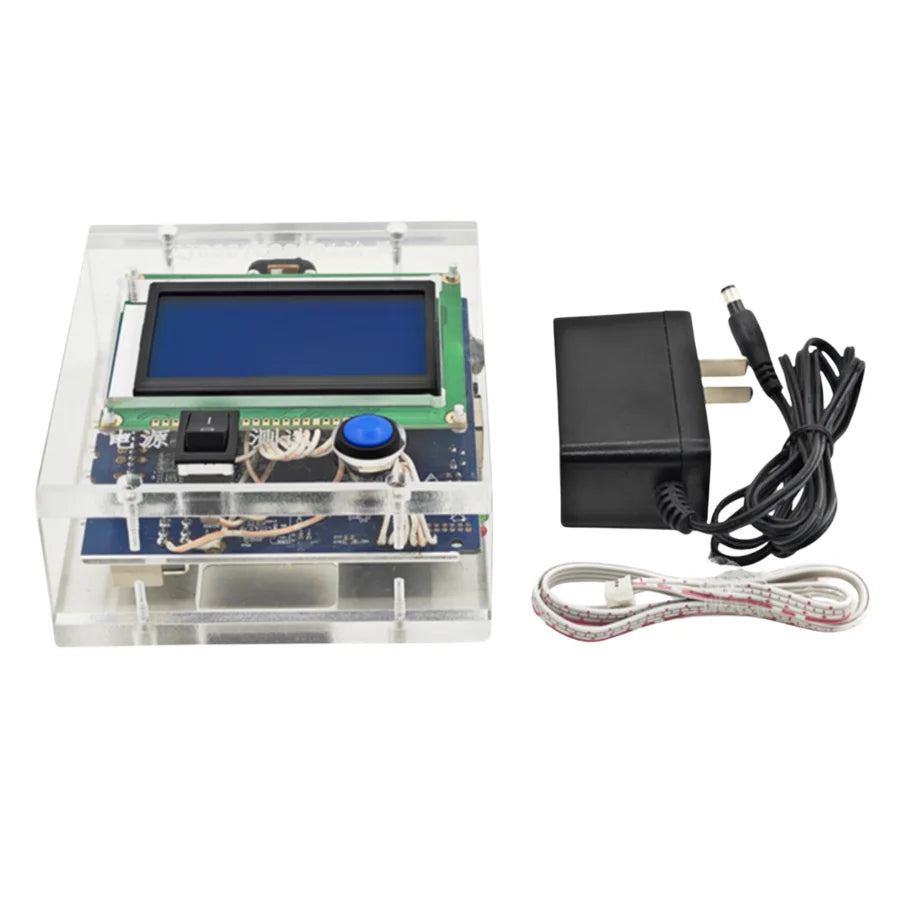

Compatible with the broad Antminer family that uses APW12 PSUs — S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, S19XP, S19j Pro-A, S19j+, D7, E9, E11, E9 Pro and similar production runs. The durable acrylic outer shell resists drops and impacts; the clear, precise wiring interfaces protect the internal test electronics from dust, debris and static. Direct power supply check means you confirm whether the PSU is dead or alive without running it on the machine — drastically simplifies the first-pass triage on incoming repair queues.

When to Use the APW12 Test Fixture

• Miner won't power on — test the PSU first before opening the miner chassis; rules in or out the PSU side in seconds.
• Miner shuts down mid-operation — load-test the APW12 to identify which output rail is dropping under demand.
• Refurbishing used PSU inventory — batch-test a stack of APW12 units, separate good from bad before stocking spares.
• PSU repair verification — confirm output spec after a component-level repair before reinstalling the PSU in production.
• Repair shop standardisation — single fixture handles all APW121215 variants without per-variant adapter rework.

APW12 PSU Test Fixture Specifications

FAQ — APW12 PSU Test Fixture

Q: Does the fixture test the PSU under realistic load?
A: Yes — the fixture provides a representative load on the output rails so you measure regulation under demand, not just open-circuit voltage. Open-circuit testing misses the failure modes that only show up at full PSU current draw.

Q: How does this differ from the broader PSU Output Tester (Antminer + Whatsminer multi-brand)?
A: The broader Output Tester covers multiple PSU families across Bitmain and MicroBT brands. This dedicated APW12 fixture is specifically tuned to the APW121215 variants — slightly faster for that single family, with deeper variant-specific reporting.

Q: Can the fixture be disassembled for repair if it breaks?
A: Self-disassembly may damage the internal components — consult our technicians for any service or repair questions during usage.

Q: Bulk pricing for repair shops equipping multiple benches?
A: Yes — email contact@lys-sz.com with your bench count and we'll send tier pricing.
