Antminer E9 Control Board version C93 ZYNQ XCZU2EG
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

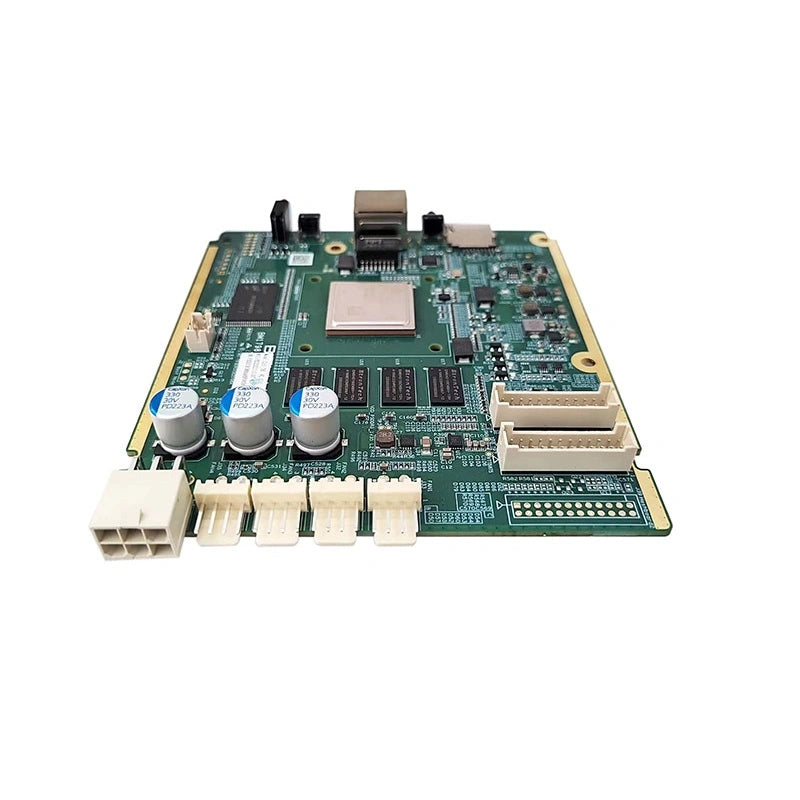

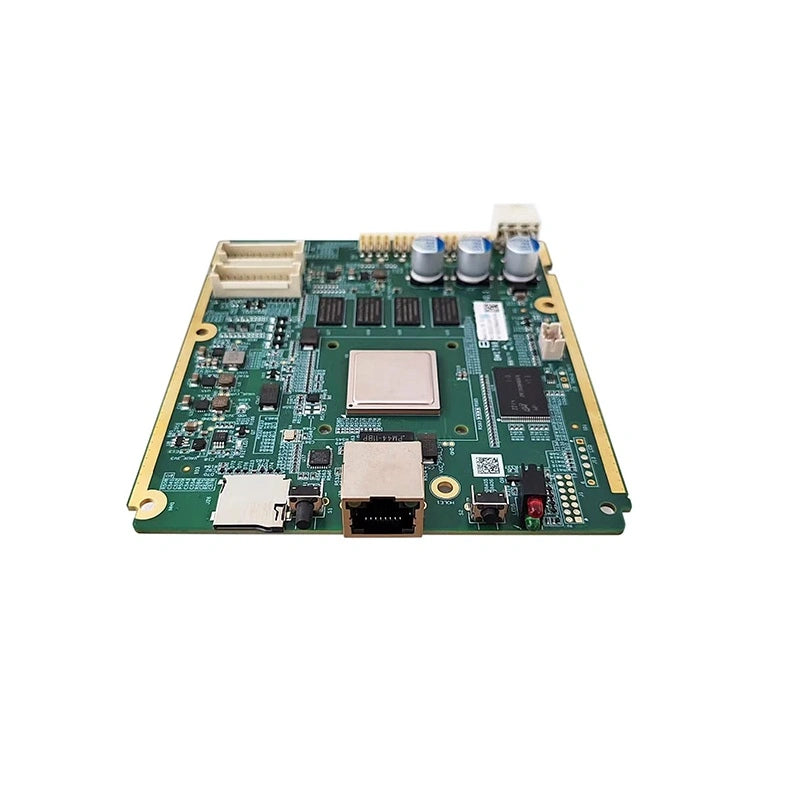

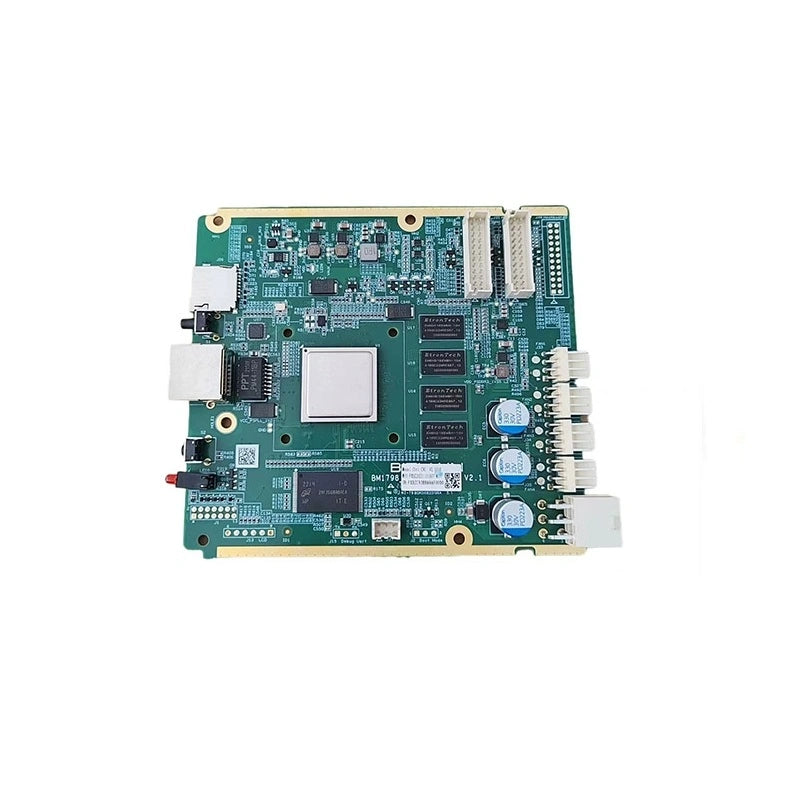

Bitmain Antminer E9 Control Board | Version C93 ZYNQ XCZU2EG Motherboard Replacement
The brand-new original Bitmain Antminer E9 Control Board C93 is the right replacement when an E9 controller fails: the board generates and routes the hash data needed for the miner to register against the pool, and a healthy controller is the difference between an E9 hashing reliably on Etchash / ETC and one stuck at boot. Built around the AMD/Xilinx ZYNQ UltraScale+ XCZU2EG SoC, this is the OEM-spec controller for the E9 ETC mining platform.
By purchasing a complete control board instead of attempting component-level repair, you save significant operation and maintenance time and cost. The replacement process is faster and more convenient, requiring no maintenance experience — install, power on, and the E9 boots to its standard web interface and acquires hashboards normally. The XCZU2EG SoC pairs an Arm Cortex-A53 application processor with FPGA fabric, which is what makes the C93 board capable of running Bitmain's hashboard control firmware.
Hassle-Free Replacement for Faster and More Convenient Mining
The board is a plug-and-play swap for the original C93 controller. After installation, the miner generates hash data normally and reports its hashrate through the standard Bitmain dashboard. For fleet operators, having spare C93 boards on the shelf cuts E9 downtime to the minutes it takes to swap the unit, rather than the days it would take to ship a board for component-level repair on a discontinued miner family.
Common Antminer E9 Control Board Failure Symptoms
- "No PIC" or "init failed" errors — controller can't initialise the hashboard PIC microcontrollers.
- Web dashboard unreachable — the miner powers on but no dashboard at the assigned IP after the boot timeout.
- 0 / 3 chains detected — controller fails to enumerate any hashboard, even with known-good hashboards.
- Random shutdowns under mining load — controller crashes, miner restarts, repeats every few minutes.
- Visible damage — burn marks, swollen caps, broken Ethernet jack after a power-line event.
Antminer E9 Control Board Technical Features
| Feature | Details |
|---|---|
| Compatibility | Bitmain Antminer E9 (Etchash / ETC) |
| Control Board Model | C93 |
| Main SoC | AMD/Xilinx ZYNQ UltraScale+ XCZU2EG |
| Hash Data Generation | Enables quick calculation of hash rate |
| Efficiency | Enhances mining performance |
| Ease of Replacement | Convenient and hassle-free, no maintenance experience required |
| Condition | Brand new, OEM spec |
FAQ — Antminer E9 Control Board
Q: Does this fit the E9 Pro as well?
A: The C93 board is the standard E9 controller. The E9 Pro uses a different control-board revision — confirm with our sales team if your miner shows the "E9 Pro" label.
Q: Will my existing E9 firmware work after the swap?
A: Yes — the C93 board ships with stock Bitmain firmware. Once the controller is installed, you can re-flash to your preferred firmware version via the standard Bitmain SD-card or web upload process.
Q: Do I need to recalibrate the hashboards after replacing the controller?
A: No — calibration data is stored on the hashboard PIC, not on the controller. The new C93 board reads it back automatically on first boot.
Q: Do you ship worldwide?
A: Yes — DDP shipping for US and EU (duties included), standard shipping with local customs for the rest of the world.
Q: Bulk pricing for E9 mining farms?
A: Yes — email contact@lys-sz.com with the quantity and we will send a volume quote.
