BZT52C15 WJ Zener Diode for Antminer L7 Hashboard

BZT52C15 WJ 15V Zener Diode SOD-123 – Antminer L7 Hashboard Circuit Protection

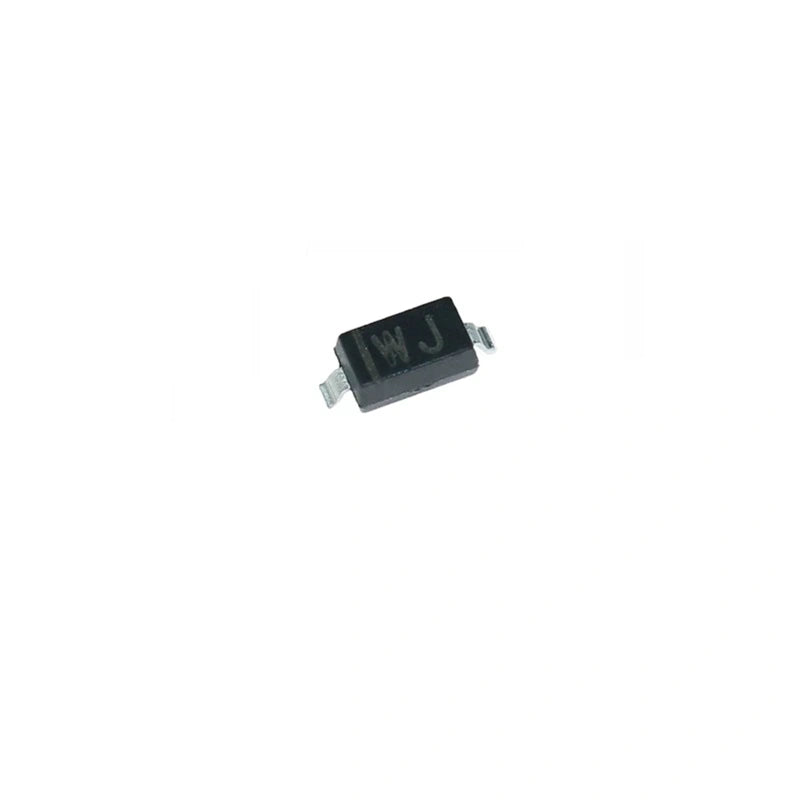

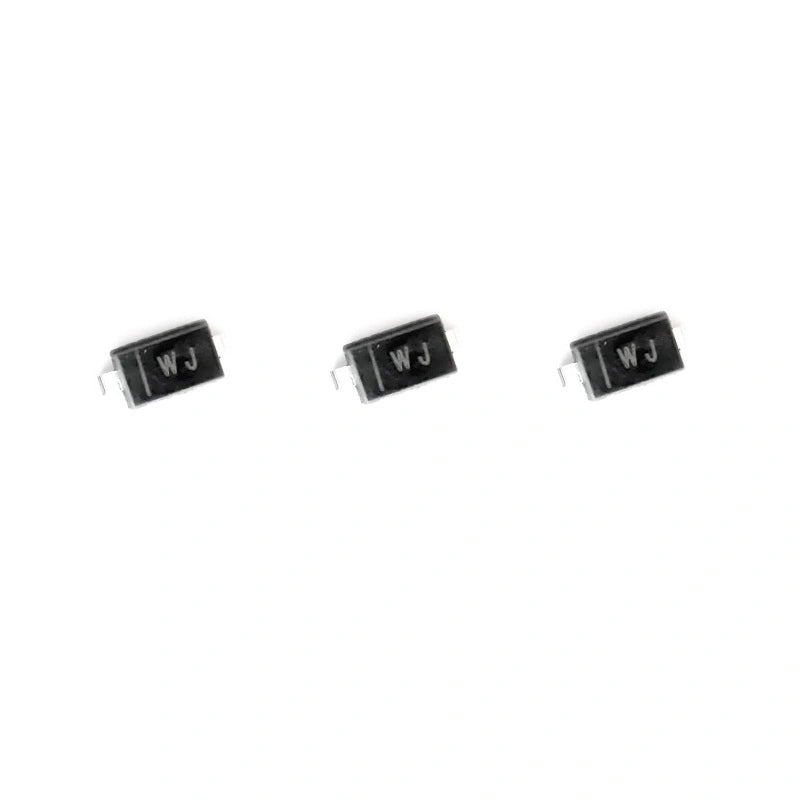

The BZT52C15 (marking WJ) is a 15V surface-mount zener diode in a SOD-123 package rated at 500 mW with ±5 % voltage tolerance. It provides voltage clamping and transient protection on the Antminer L7 hashboard, preventing overvoltage conditions from reaching sensitive ASIC chips and support circuitry. UL 94 V-0 rated, moisture sensitivity level 1, suitable for automated reflow assembly.

Why Zener Diodes Matter on Hashboards

Zener diodes on mining hashboards clamp voltage spikes that occur during power sequencing, hot-swapping or transient load changes. Without functioning clamping, a voltage spike on a supply rail can exceed the absolute maximum rating of the ASIC chips or their supporting regulators, causing permanent damage. A failed zener — either open or shorted — removes this protection or pulls the rail to ground, both of which manifest as chip errors, hash rate loss or board detection failures.

Replacement Procedure

Remove the hashboard and locate the failed BZT52C15 near the protected rail — the SOD-123 package is small (2.7 × 1.6 mm) and marked WJ. Test with a multimeter in diode mode: a good zener reads ~15V in reverse; a short or open reading confirms failure. Desolder with a fine-tip iron, clean pads, place the new component observing polarity (cathode band), and reflow. Verify the rail voltage is within specification before reinstalling.

BZT52C15 Zener Diode Specifications

Related Diodes & Antminer L7 Hashboard Components

• 1SMB5924BT3G 3W Zener Diode – Antminer S19XP Hashboard
• BZT52C4V7 4.7V Zener Diode – Antminer S19 Pro Hashboard
• SMBJ190A TVS Diode – Antminer L7 / D7 Hashboard
• 330µF 35V SMD Capacitor – Antminer L7 Hashboard Repair
