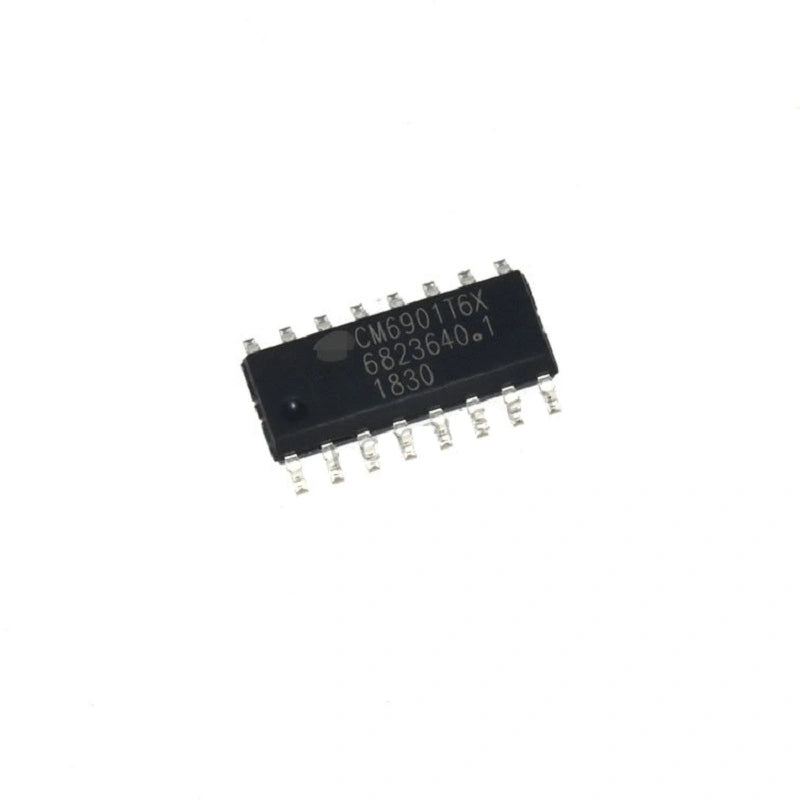

CM6901XISTR CM6901X SMD Resonant Controller
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
CM6901X LLC + SR Resonant Controller – High-Efficiency Mining PSU Repair
The CM6901XISTR (CM6901X) is an SRC/LLC resonant controller with integrated synchronous rectification (SR) for offline DC-DC conversion. It features light-load PWM mode, SR Ideal Diode PWM for improved efficiency below the resonant frequency, a precision 2.5V VFB feedback reference, dual gate drivers (12V peak), integrated soft-start with shutdown, and auto-restart during current-limit conditions. Operates across both SRC and LLC frequency regions.
Why Use an Integrated LLC+SR Controller
Combining the LLC resonant controller and synchronous rectification driver into a single IC simplifies the PSU design and reduces component count. The CM6901X's light-load PWM function improves efficiency at low loads — important in mining PSUs that cycle between full hash rate and idle states. When this controller fails, the PSU produces no output or oscillates erratically.
Replacement Procedure
Disconnect mains and discharge all capacitors. Locate the CM6901X on the primary control board. Desolder, clean pads, install with pin 1 aligned and reflow. If controller failure caused MOSFET damage, replace those as well. Power through a variac under progressive load.
CM6901X Controller Specifications
| Parameter | Value |
|---|---|
| Part Number | CM6901XISTR |
| Topology | SRC/LLC + SR |
| Gate Drivers | Dual, 12V peak |
| VFB Reference | 2.5V precision |
| Light Load | PWM mode |
| Hold-up Time | 20ms (with bulk cap) |
| Condition | New |
Related PSU Resonant Controllers
- L6599D LLC Controller – Bitmain / Avalon PSU
- HR1001A LLC Controller – Whatsminer PSU
- L6599AD Resonant Converter Controller
- SRC60R090B MOSFET – Innosilicon G1240 PSU
Repairing mining PSU resonant stages? Contact us at contact@lys-sz.com for LLC controllers and power stage ICs. Worldwide shipping from our Shenzhen warehouse.
