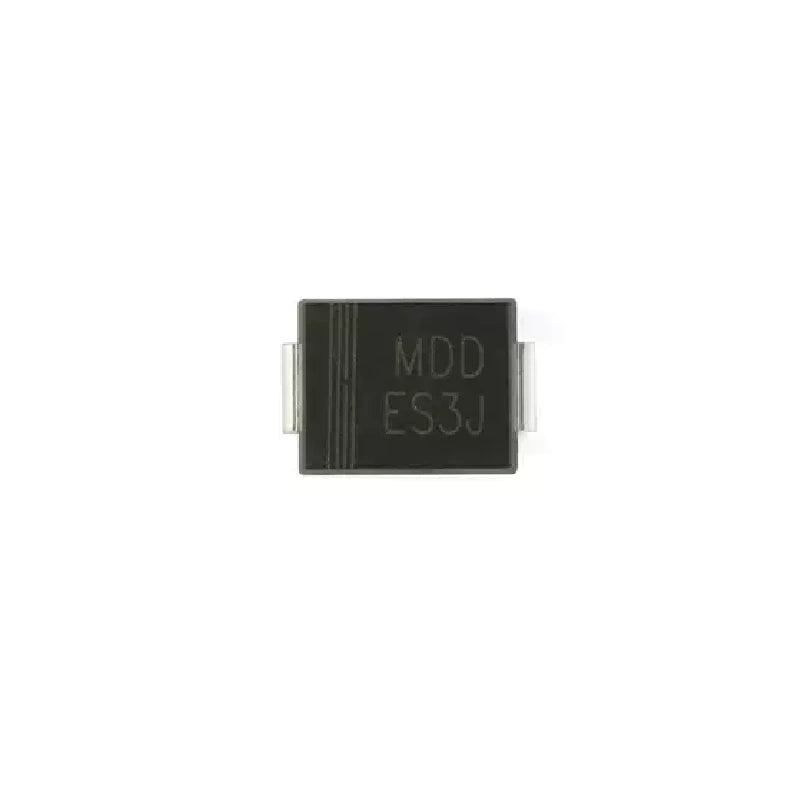

ES3J High reliability and Super-fast Recovery Rectifiers Diode 600V
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product

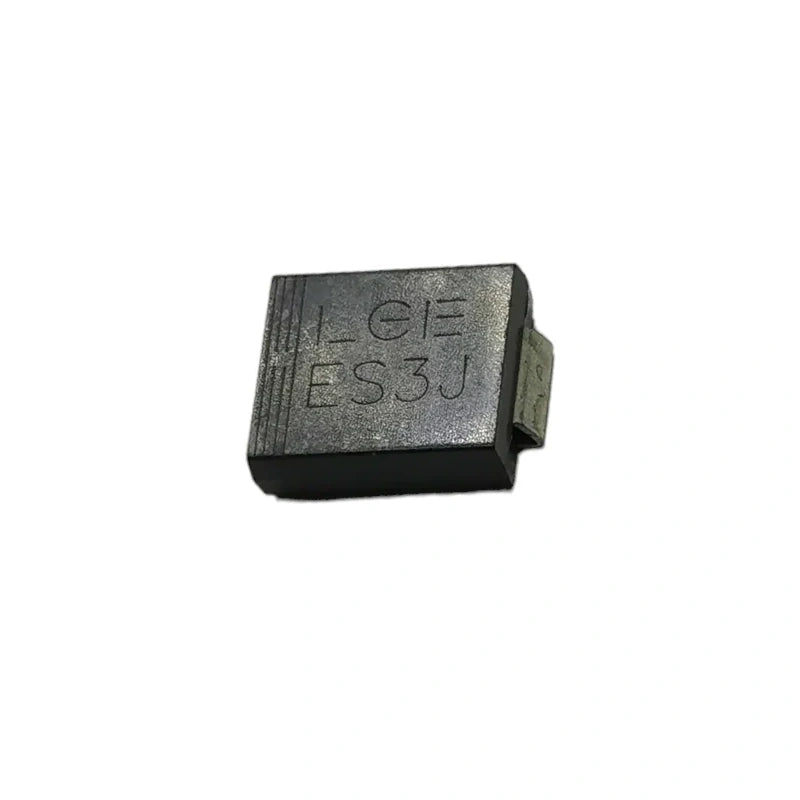

3ES3J Super-Fast Rectifier Diode - Ultra-Reliable Performance for High-Performance Applications
Upgrade your high-performance applications with the 3ES3J Super-Fast Rectifier Diode. Designed to deliver ultra-reliable performance, this diode is the perfect choice for crypto miners, electric welding machines, LED lamps, power chargers, household equipment, and automotive fields.
Advanced Super-Fast Rectifier Diode for High-Performance Applications
The 3ES3J diode features an ultra-fast recovery time, ensuring minimal loss and maximum efficiency. With its glass-passivated junction, it provides reliable rectification while maintaining low-profile packaging for easy handling and assembly. The built-in strain relief enhances durability and safety, making it suitable for long-term usage.
Unleash Unmatched Efficiency and Reliability with the 3ES3J Rectifier Diode
This super-fast rectifier diode is rated for a maximum recurrent reverse voltage of 600V, operating within a wide temperature range of -55°C to +150°C. With a forward voltage of 1.7V and a forward current of 3A, it delivers optimal performance in various high-power applications. The diode can handle a maximum surge current of 100A and has a power dissipation of 1.66W.
ES3J Technical Features:
| Feature | Description |
|---|---|
| Ultra-fast recovery diode | Enables minimal loss and maximum efficiency |
| Glass-passivated junction | Provides reliable rectification |
| Low-profile packaging | Easy handling and assembly |
| Built-in strain relief | Enhances durability and safety |
| Maximum recurrent reverse voltage | 600V |
| Operating temperature range | -55°C to +150°C |
| Forward voltage | 1.7V |
| Forward current | 3A |
| Maximum surge current | 100A |
| Power dissipation | 1.66W |
