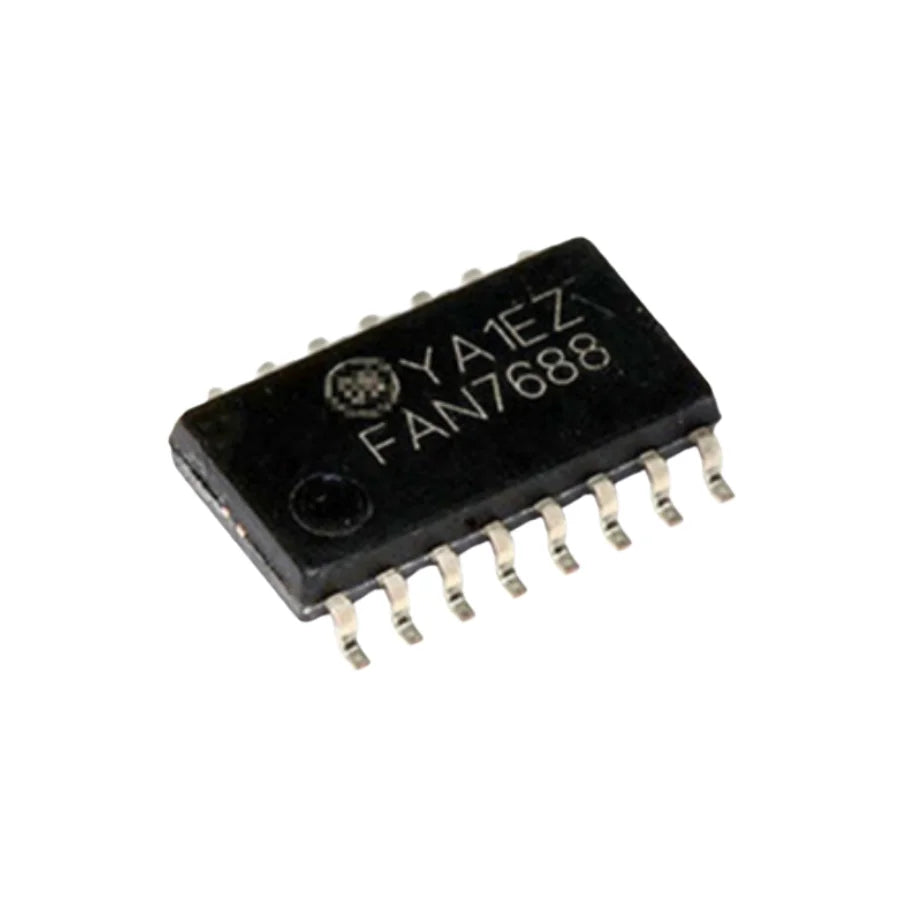

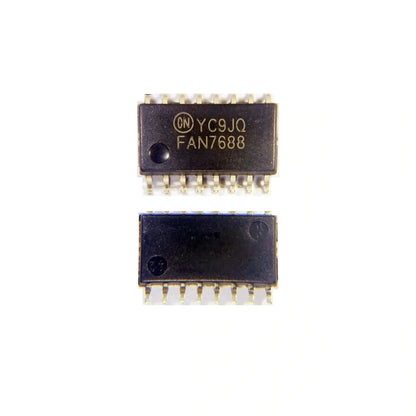

FAN7688SJX PFM Controller for Bitmain APW12 APW8 APW9 PSU Repair
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
FAN7688SJX PFM LLC Resonant Controller | Charge-Control Current-Mode Controller with Synchronous Rectification, Soft-Start and Adaptive Dead-Time for Bitmain APW7 / APW8 / APW9 / APW12 Mining PSU Repair
The FAN7688SJX is an advanced Pulse Frequency Modulation (PFM) controller designed for high-efficiency LLC resonant converters with synchronous rectification (SR) — the controller IC at the heart of the Bitmain APW12, APW9, APW8, and APW7 mining PSU platforms. The single most common controller IC failure during APW-series PSU repair, refurbishment, and production work.
Using a charge-control based current-mode architecture, the FAN7688SJX simplifies feedback loop design while maximising conversion efficiency in isolated DC/DC topologies. Integrated soft-start delivers safe voltage ramp-up at PSU startup. Adaptive dead-time control further improves switching performance under variable load conditions characteristic of mining workloads. True input power limiting adds protection layer beyond standard overcurrent. Integrated fault handling improves PSU reliability across thousands of thermal cycles.
Key Technical Advantages
- PFM control for improved light-load efficiency vs traditional fixed-frequency approaches.
- Closed-loop soft-start for safe voltage ramp-up at PSU startup.
- Adaptive dead-time control for synchronous rectification optimization.
- True input power limiting for enhanced overpower protection.
- Integrated fault handling for PSU reliability and fault recovery.
- Ideal drop-in replacement for Bitmain APW7 / 8 / 9 / 12 PSU repair work.
Typical Applications
- Bitmain APW-series PSU repair — APW12 / APW9 / APW8 / APW7 controller failures.
- LLC resonant DC/DC converters — general-purpose LLC controller for industrial designs.
- Server / telecom power modules — datacenter PSU repair and refurbishment.
- Industrial high-voltage SMPS — switching power supply controller for industrial gear.
FAN7688SJX Specifications
| Parameter | Specification |
|---|---|
| Part Number | FAN7688SJX |
| Controller Type | PFM (Pulse Frequency Modulation) Controller |
| Topology | LLC Resonant Converter with Synchronous Rectification |
| Architecture | Charge-control current-mode |
| Startup | Closed-loop soft-start (programmable ramp) |
| Dead-Time | Adaptive (load-dependent optimization) |
| Protection | True input power limiting + fault handling |
| Compatible PSU Models | Bitmain APW7 / APW8 / APW9 / APW12 |
| Condition | Brand New |
FAQ — FAN7688SJX PFM Controller
Q: How do I know the FAN7688SJX has failed on my APW PSU?
A: Common symptoms: PSU won't start (no soft-start), PSU starts then immediately shuts down, no PWM output to MOSFETs, gate-drive signals absent on oscilloscope. The IC may show visible burn marks or just be silently dead. Test other components first (input fuse, bulk caps, MOSFETs) since a downstream failure often takes the controller with it.
Q: Can I substitute another LLC controller?
A: For APW-series PSU repair, no — the FAN7688SJX has specific pin assignments and control characteristics matched to the OEM board layout. Pin-compatible substitutes don't exist for this exact IC.
Q: After replacing the FAN7688SJX, what else should I check?
A: When the controller fails, surrounding components often have stress damage. Check the gate-drive MOSFETs (typically TPHR8504PL family), startup resistor / cap network, bootstrap circuit, and feedback opto-isolator. Replace any suspect parts before powering up.
Q: Bulk pricing for PSU repair shops?
A: Yes — email contact@lys-sz.com with your monthly volume for tier pricing on FAN7688SJX repair stock.
