GPT13N50DG MOSFET for Whatsminer Power Supply Repair

GPT13N50DG N-Channel MOSFET TO-220F – Whatsminer Power Supply Repair

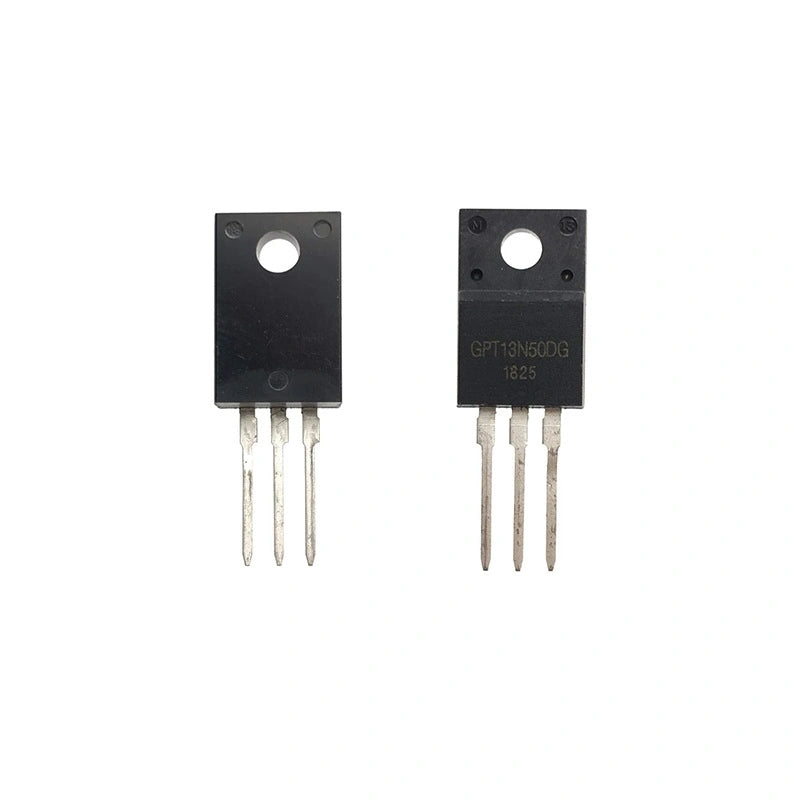

The GPT13N50DG is a high-voltage N-channel MOSFET in a TO-220F (isolated tab) package, designed for primary-side switching in Whatsminer power supplies. It features advanced termination technology for robust voltage blocking, a fast-recovery source-to-drain body diode comparable to dedicated recovery diodes, and full avalanche and commutation energy rating. Used in bridge circuits and LLC resonant topologies in mining PSUs.

Why This MOSFET Suits Mining PSU Repair

Mining PSUs run their primary-side MOSFETs at sustained high power for months. The GPT13N50DG's fast body diode minimises reverse-recovery losses during dead-time switching, while the avalanche rating ensures the device survives transient overvoltage events without degradation. The TO-220F insulated tab simplifies heatsink mounting — no additional insulating pad required between the package and the common heatsink.

Replacement Procedure

Disconnect mains and discharge bulk capacitors. Locate the failed MOSFET in the bridge circuit near the main transformer. Remove the mounting screw, desolder the through-hole leads and clean the holes. Install the new GPT13N50DG with correct pin orientation, apply thermal compound and torque the mounting screw. Power through a variac under progressive load and verify clean, stable output.

GPT13N50DG MOSFET Specifications
