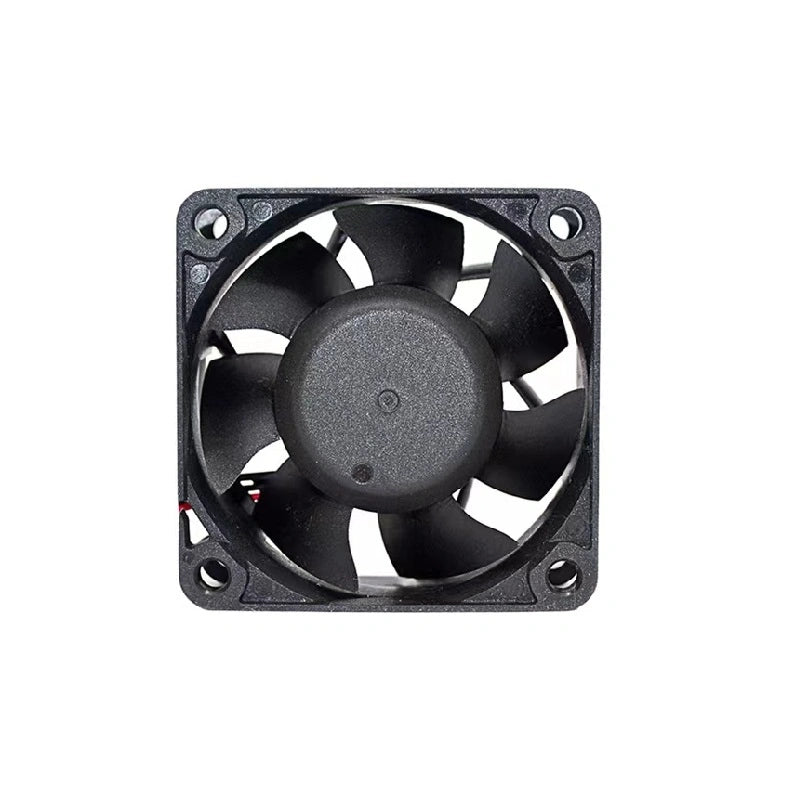

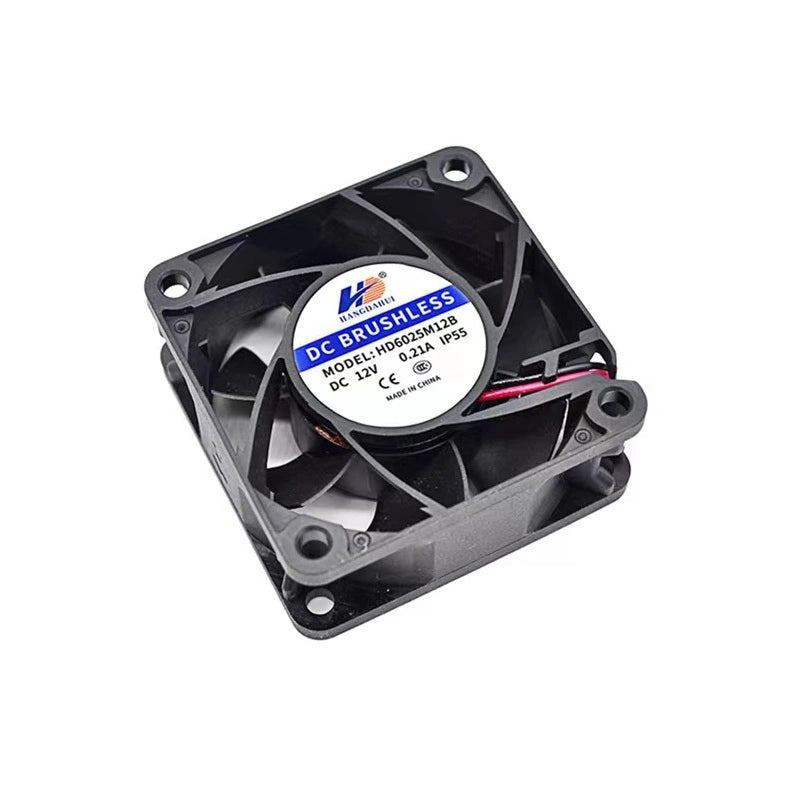

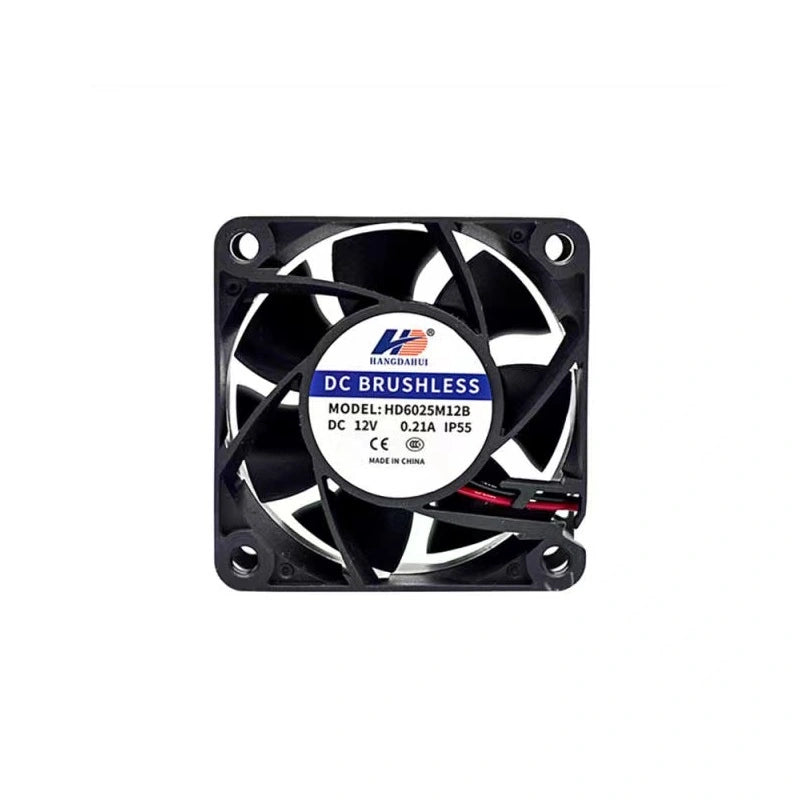

HD6025M12B Cooling Fan 60mm for Bitmain PSU APW3 APW7 APW12
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
Enhanced Cooling Performance for Bitmain APW3 APW7 APW12 PSU - HD6025M12B Fan Cooler
Upgrade the cooling performance of your Bitmain APW3, APW7, and APW12 power supply units with the HD6025M12B Fan. This fan is designed to provide ideal performance and effectively reduce high temperatures, thanks to its high-quality components and advanced design. It ensures efficient air circulation, enhanced cooling performance, and operates silently, making it an excellent choice for optimizing your power supply.
Efficient and Silent Cooling Fan for Bitmain Power Supply Units
The HD6025M12B Fan boasts a compact size of 60x60x25mm, rated at DC 12V and 0.21A. With a wattage of 2W, it delivers efficient cooling power while maintaining a low power consumption. The 2-wire connector ensures easy installation and compatibility with Bitmain power supply units.
HD6025M12B Technical Features:
|
Model
|
HD6025M12B
|
|
Product Category
|
PSU Cooling Fan
|
|
Size
|
60x60x25mm
|
|
Item Condition
|
New
|
|
Rated Voltage
|
DC 12V
|
|
Rated Current
|
0.21 A
|
|
Wattage
|
2W
|
|
Connector
|
2-Wire
|
|
Model Type
|
12V 0.14A, 60x60x25, 2w
|
Common failure symptoms
- PSU goes into thermal shutdown — fan no longer spins or stalls at low RPM
- Audible bearing rattle or grinding noise from the PSU enclosure
- Dust impacted in the blades blocks airflow and trips over-temperature protection
- 2-wire lead frayed or pulled out at the strain entry into the fan hub
- PSU output drops or shuts down under sustained 1500W+ load
Frequently asked questions
Is the HD6025M12B a 2-wire or 4-wire fan?
2-wire (power + ground). The APW3 / APW7 / APW12 PSUs do not use PWM control on this position.
Can I use it on an APW8 or APW9 PSU?
No. APW8 and APW9 use a 40x40x28mm fan such as the FFB0412VHN. The HD6025M12B is specifically the 60mm format for APW3, APW7 and APW12.
Does it ship with a connector or bare leads?
It ships with the standard 2-wire pigtail used on the original PSU fan position. Confirm connector orientation before final assembly.
Do you sell other APW3 / APW7 / APW12 repair parts?
Yes — 250V C14 inlet plug, 30A ceramic fuse, 220µF/25V caps and PFC MOSFETs commonly replaced on APW3++ are all stocked alongside this fan.
Related products
- PSAD16025BM 6025 12V 0.27A PSU Fan for APW3 / APW7
- FD6025B12H 6025 12V PSU Fan for APW3 / APW7 / APW12
- 250V C14 Power Male Plug for APW3 / APW7 PSU
- 25V 220µF Aluminum Electrolytic Capacitor for APW3++
