About the Product

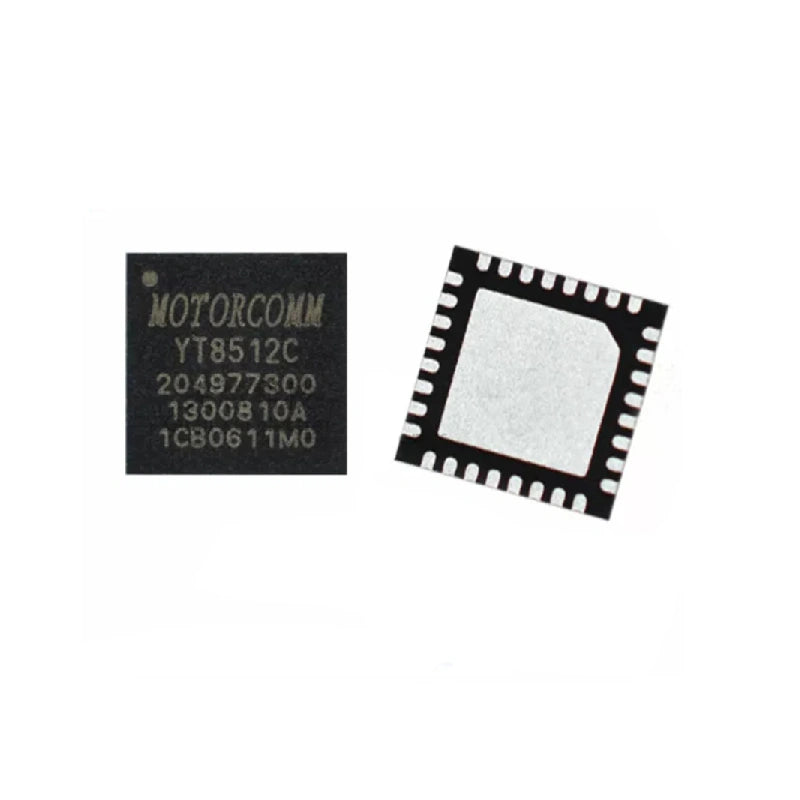

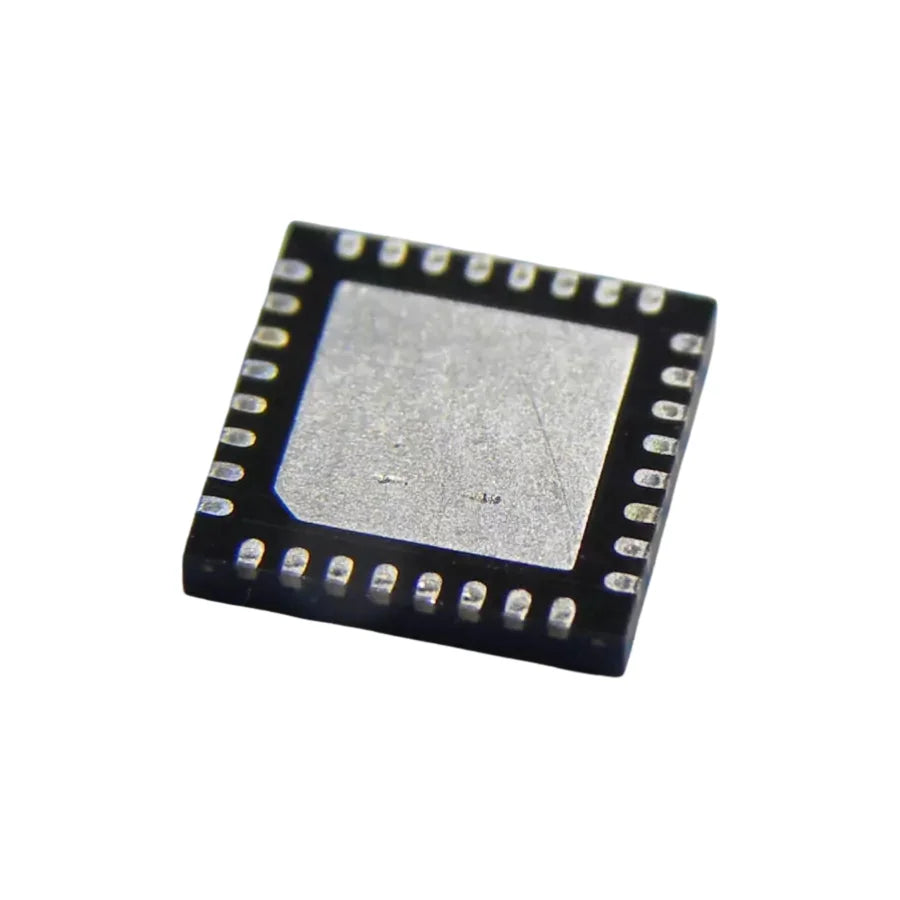

YT8512C Ethernet PHY Chip Replacement for Antminer S19j Pro+ C76 Control Board
The YT8512C Ethernet PHY chip is designed to replace faulty Ethernet PHY chips on the Antminer S19j Pro+ C76 control board. This low-power, single-port 100 Mbps Ethernet PHY provides all necessary physical layer functions for transmitting and receiving data over standard twisted pair cables.
Low-Power YT8512C Ethernet PHY for Antminer S19j Pro+ C76 Control Board
Key features of the YT8512C include support for both MII and RMII interfaces, enabling flexible connections to a MAC. It complies with IEEE 802.3az standards for energy-efficient Ethernet, supports both 100Base-TX and 10Base-Te standards, and offers full/half duplex operation.
Key Features of YT8512C Ethernet PHY for Antminer S19j Pro+ Repairs
| Feature | Specification |
|---|---|
| Ethernet Standards | IEEE 802.3az, 100Base-TX, 10Base-Te |
| Interfaces | MII, RMII |
| Duplex Modes | Full/Half |
| Auto-Negotiation | Supported |
| Power Mode | Power-off mode |
| Compensation | Baseline wander (BLW) |
| MDIX | Auto MDIX |
| Polarity | Auto polarity correction |
| Wake-up | WOL, Wake-up on LAN |
| Indicators | 2 sets of LED indicators |
| Clock Source | 25 MHz crystal or OSC, 50 MHz for MAC |
| Power Supply | Single power supply, internal LDO |
| Package | QFN 32, 5x5mm |
