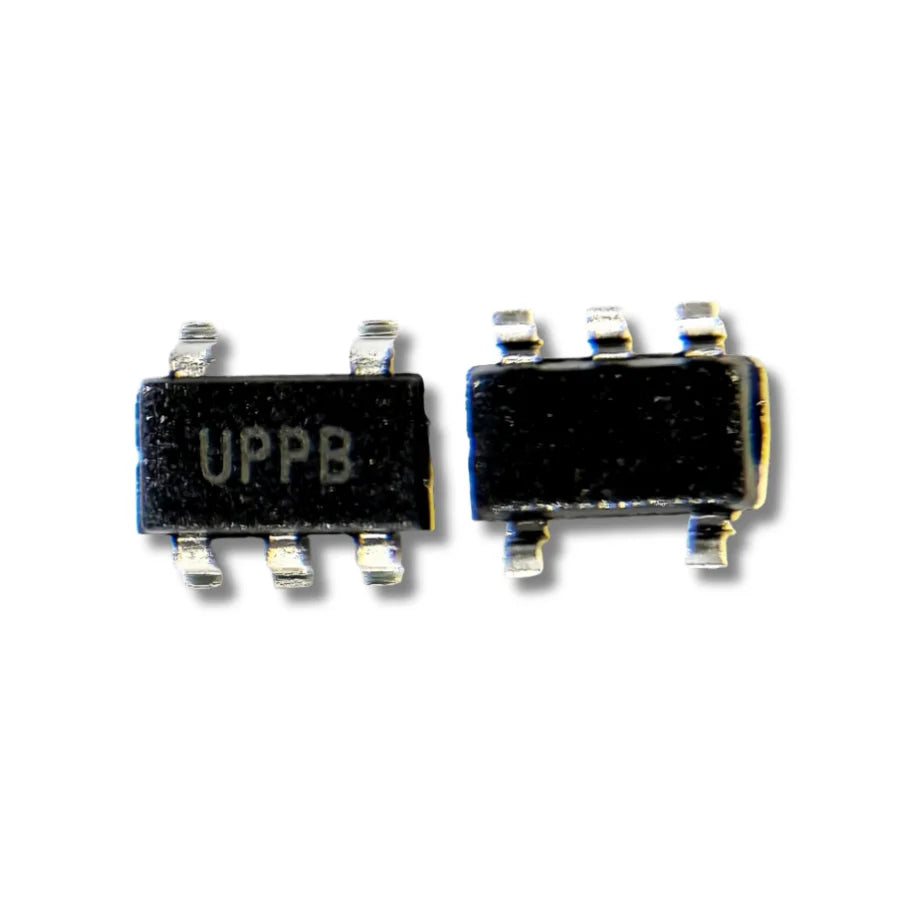

MCP1824T-1202E/OT LDO Voltage Regulator 1.2V for Bitaxe Gammer BM1370

MCP1824T-1202E/OT 1.2V LDO Voltage Regulator | 300mA Low-Dropout Linear Regulator in SOT-23-5 for BM1370-Class Mining Boards and ASIC Peripheral Rails

The MCP1824T-1202E/OT is a fixed-output 1.2V low-dropout (LDO) linear voltage regulator in a compact SOT-23-5 package. The 1.2V output supplies the low-voltage peripheral rails used on BM1370-class hashboards and other ASIC mining hardware — including the BM1370 boards used in Bitaxe Gammer 601 SOLO miners and similar BM1370-based control boards. Original IC, drop-in replacement when an existing LDO degrades or fails on the secondary rail.

Tight ±0.4% output voltage tolerance, 200mV typical dropout at 300mA, and 120µA typical quiescent current (0.1µA in shutdown) keep the rail clean and efficient even at the low quiescent loads typical of ASIC peripheral circuitry. Input range 2.1V to 6.0V works directly from 3.3V or 5V upstream rails. Operating temperature span -40°C to +125°C covers both indoor mining rooms and the high-ambient environments inside chassis at full duty.

When to Replace the MCP1824T-1202E/OT

• 1.2V peripheral rail dead or out of spec on a BM1370 control board — LDO failed open or output capacitor degraded.
• Output voltage drift beyond the 0.4% tolerance — trim drift on the internal reference, replace for accurate regulation.
• Excessive ripple on the downstream rail — degraded LDO PSRR, output capacitor failing, or both.
• Visible damage on the SOT-23-5 package — burn marks, lifted pins, surge damage.
• Preventive refurbishment — refresh peripheral LDOs during a complete board overhaul.

MCP1824T-1202E/OT LDO Specifications

FAQ — MCP1824T-1202E/OT

Q: Is the 1.2V variant interchangeable with other MCP1824T output voltages?
A: The MCP1824T family ships in multiple fixed-output voltages (1.2V, 1.8V, 2.5V, 3.3V, etc.) — they share the same SOT-23-5 footprint and pinout but the output is laser-trimmed at the factory. Match the exact part number to your board's required rail voltage.

Q: How does the LDO compare to a buck converter on the same rail?
A: LDOs give cleaner output (lower noise), simpler external circuitry, and lower BOM cost — at the cost of lower efficiency at high input-output differentials. For low-current peripheral rails (under 300mA) the LDO is the standard choice. For higher currents or large Vin-Vout drops, switching converters are preferred.

Q: What rework equipment do I need?
A: SOT-23-5 reflow uses hot-air rework or a fine-tip iron with magnification. Standard equipment for any modern hashboard or control board repair bench.

Q: Bulk pricing for repair shops?
A: Yes — email contact@lys-sz.com with your monthly volume. Reel and tube quantities are stocked.
