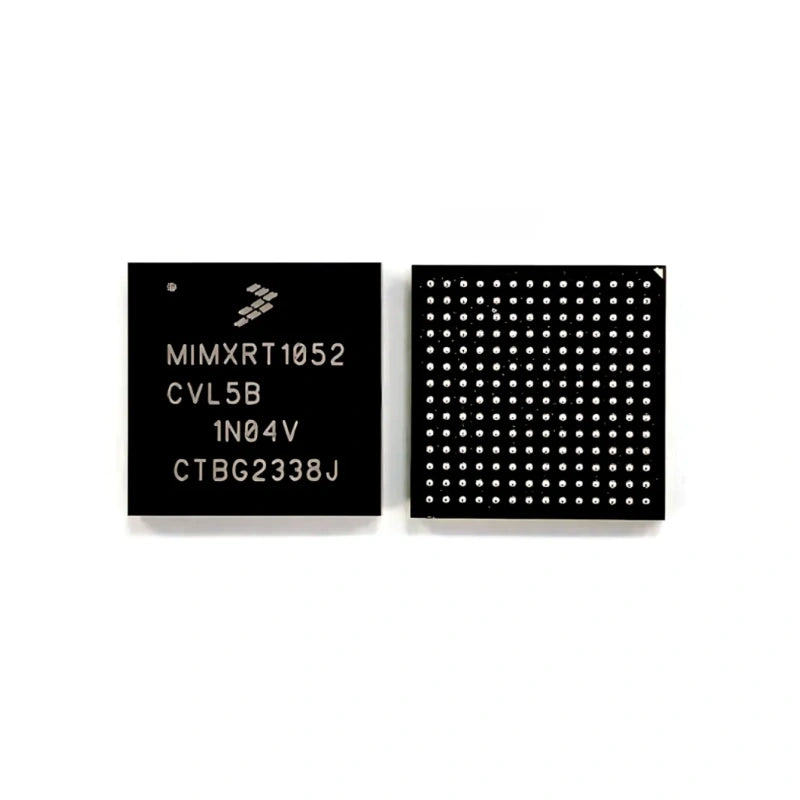

MIMXRT1052CVL5B Microcontroller - 32-Bit Cortex-M7 Core 528MHz 196-LFBGA

MIMXRT1052CVL5B Microcontroller | 32-Bit Cortex-M7 528MHz 196-LFBGA

The MIMXRT1052CVL5B is a high-speed embedded-control MCU built on a 32-bit Arm® Cortex®-M7 core running at 528MHz with external program memory support. NXP's RT1050 series is engineered for the demanding workload of industrial automation, IoT gateways, and smart-device controllers — applications where the throughput of a Cortex-M7 plus the determinism of a real-time MCU outperforms a heavier Cortex-A application processor.

The chip ships with 512KB SRAM, an integrated LCD controller, and a wide connectivity stack (CANbus, Ethernet, USB OTG, SPI, I²C, 12× UART) — the toolkit for control-loop firmware that needs to talk to networks, drives, and HMI panels at industrial speeds. With 127 GPIO pins and 20× 12-bit ADCs, board designers have plenty of I/O margin for sensor fusion, motor encoder feedback, and real-time control tasks.

RT1050 Series MCU with External Memory Support & 127 I/O Pins

• Blazing-fast processing — 528MHz clock speed for real-time control applications.
• Rich connectivity — CANbus, Ethernet, USB OTG, SPI, I²C, and 12× UART on-chip.
• Expanded I/O capacity — 127 programmable GPIO pins for complex system integration.
• Industrial-grade reliability — operates from -40°C to +105°C with brown-out detection.
• Multimedia capable — integrated LCD controller and SPDIF audio interface.

Ideal Applications

The MIMXRT1052CVL5B lands cleanly in industrial HMI panels, networked sensor hubs, motor-control systems, IoT edge devices, and audio-processing equipment. The Cortex-M7 core's deterministic timing makes it suitable for hard-real-time motor and inverter control loops, while the external-memory interface lets designers attach sizeable application code and graphics framebuffers without compromising on RAM. Pair with a CAN transceiver for industrial bus connectivity and an ADC for precision sensor reads.

MIMXRT1052CVL5B Technical Specifications
