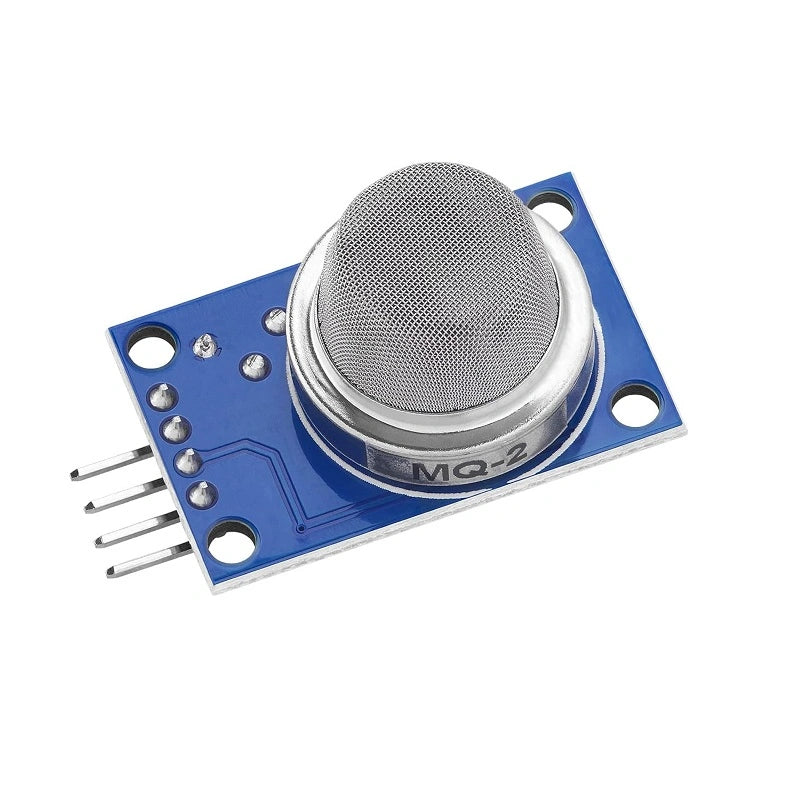

MQ-2 Gas Sensor Module for Raspberry Pi & Arduino - Air Quality Monitoring
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
MQ-2 Gas Sensor Module | Multi-Gas Detection Module with Adjustable Sensitivity for LPG, Methane, Propane, Hydrogen, Alcohol and Smoke Detection on Arduino, Raspberry Pi and Embedded Air Quality Monitoring Systems
The MQ-2 Gas Sensor Module is the industry-standard multi-gas detection module for Arduino, Raspberry Pi, and embedded air quality projects. Detects LPG, i-butane, propane, methane, alcohol, hydrogen, and smoke from a single sensor element — the workhorse module for DIY gas leak detectors, gas alarms, robotics safety systems, and educational electronics kits.
Operates on 5V DC supply with both analog and digital outputs: the analog output gives continuous concentration measurement (useful for trending), the digital output triggers above an adjustable threshold (useful for alarm logic). Adjustable sensitivity via onboard potentiometer calibrates threshold trip point to your application. Concentration range 100–10000 ppm covers ambient detection through dangerous accumulation. Quick response time enables real-time gas event detection.
Typical Applications
- Gas leak detection — kitchen, workshop, basement, garage safety alarms.
- Industrial gas alarms — early-warning systems for industrial facilities.
- Robotics safety systems — autonomous robots in environments with gas exposure risk.
- Smart home air quality monitoring — combined with MCU + WiFi for cloud telemetry.
- Educational electronics projects — teaching gas sensing, ADC reading, threshold detection.
MQ-2 Gas Sensor Module Specifications
| Technical Feature | Specification |
|---|---|
| Detection Capability | LPG, i-butane, propane, methane, alcohol, hydrogen, smoke |
| Operating Voltage | 5V DC |
| Output Types | Analog Output (AO) + Digital Output (DO) |
| Gas Concentration Range | 100 to 10000 ppm |
| Sensitivity Adjustment | Onboard potentiometer (digital threshold) |
| Compatibility | Arduino / Raspberry Pi / STM32 / ESP32 / generic MCU |
| Response Time | Fast (real-time detection capable) |
| Form Factor | Compact PCB module |
| Condition | Brand New |
FAQ — MQ-2 Gas Sensor Module
Q: Does it differentiate between gas types?
A: No — the MQ-2 sensor element responds to all listed gases. It detects total combustible gas concentration without identifying which gas is present. For gas-specific detection, use single-target sensors (MQ-7 for CO, MQ-3 for alcohol, etc.).
Q: How long does the sensor need to warm up?
A: The MQ-2 sensor needs a 24-hour initial burn-in for best stability. After that, typical warm-up before reading is 1-3 minutes from cold start. For battery-powered always-on systems, run the heater continuously.
Q: Can I use it for hard-rated commercial gas detection?
A: No — the MQ-2 is suitable for hobbyist, educational, and indicative monitoring. For commercial / industrial / life-safety applications, use certified gas detectors with calibration logs and regulatory approval (UL, CE-rated).
Q: Bulk pricing for production runs?
A: Yes — email contact@lys-sz.com with your quantity for tier pricing on educational kits or production deployments.
