PC817C Optocoupler for ASIC Miner Power Supply Repair
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

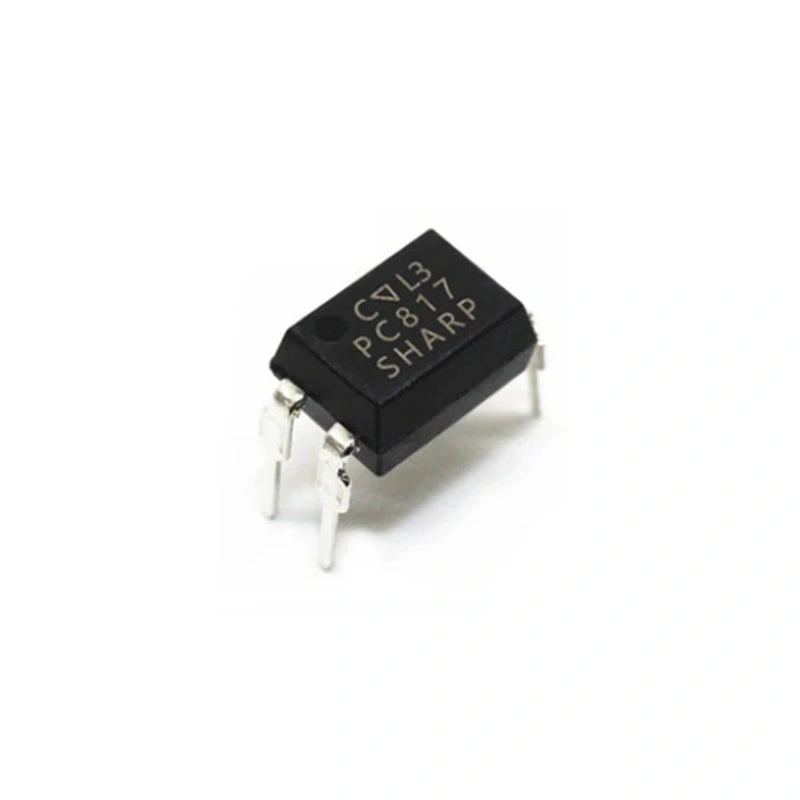

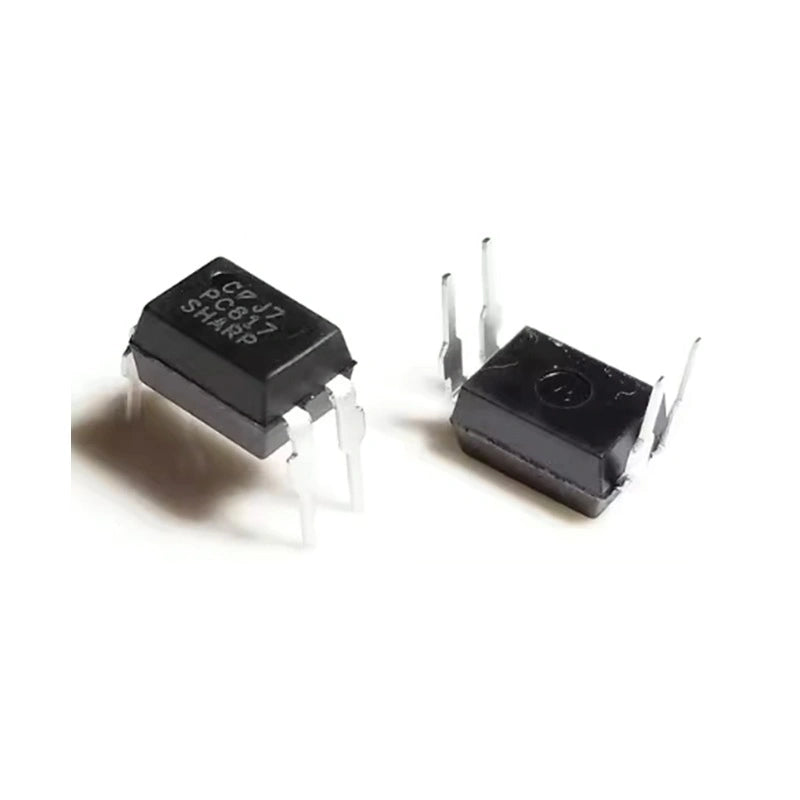

PC817C Optocoupler | High-Isolation 4-pin DIP Replacement IC for ASIC Miner Power Supply Repair
The PC817C is a 4-pin DIP phototransistor optocoupler used widely on ASIC miner power supplies for input-to-output isolation, feedback path isolation, and signal transmission across different voltage potentials. A single PC817C typically sits on the feedback loop between the secondary side and the primary controller — when it degrades the PSU loses voltage regulation, gives noisy output, or trips on the slightest load step. Replacing it restores normal regulation.
Internally the PC817C couples an infrared LED (IRED) to a phototransistor through a 5.0 kV (rms) isolation barrier. Collector-emitter voltage rating is 80V, with a current transfer ratio (CTR) of 50% to 600% at IF = 5 mA and VCE = 5V. Available in standard DIP-4 and SMT gull-wing lead forms, with wide lead pitch options for repair flexibility.
When to Replace the PC817C
- PSU output voltage drifts or oscillates — feedback loop optocoupler degraded, CTR fallen below spec.
- Erratic output under load step — slow optocoupler response, regulation lag, miner refuses to start.
- PSU dead with primary working but no secondary output — failed feedback or enable opto on the secondary side.
- Visible burn or discoloration on the PC817C package — thermal or surge damage, replace immediately.
- Preventive replacement during PSU refurbishment — optos drift over years of thermal cycling, refresh alongside the bulk caps.
PC817C Optocoupler Specifications
| Feature | Specification |
|---|---|
| Part Number | PC817C |
| Package Type | 4-pin DIP (SMT gull-wing also available) |
| Isolation Voltage (rms) | 5.0 kV |
| Collector-Emitter Voltage | 80 V |
| Current Transfer Ratio (CTR) | 50% – 600% at IF = 5 mA, VCE = 5 V |
| Input | Infrared LED (IRED) |
| Output | Phototransistor |
| Lead Pitch | Wide options available |
| Typical Applications | I/O isolation, MCU signal isolation, PSU feedback loop, noise suppression |
| Use Case | ASIC miner PSU repair (Bitmain APW, Whatspower, Avalon, etc.) |
FAQ — PC817C Optocoupler
Q: Are PC817A, PC817B, PC817C and PC817D interchangeable?
A: They share package and pinout but differ by CTR bin (A is lowest, D is highest). For ASIC PSU feedback the C grade is the most common factory choice — substituting other grades can shift the loop gain and cause regulation instability. Match the grade when possible.
Q: How do I know the PC817C has failed without a scope?
A: Visual inspection (burn, discoloration) catches the obvious cases. For non-visible failures, the PSU symptoms (drift, oscillation, dead-on-load) plus continuity / IRED forward voltage check on a multimeter localize the fault in most cases.
Q: Is this part used on hashboards too or only PSUs?
A: Primarily PSUs (Bitmain APW series, Whatspower, Avalon and Innosilicon PSU families all use PC817 family parts). Hashboards use different isolator topologies (digital isolators like NSI8221W1D, Si8261 family).
Q: Bulk pricing for repair shops?
A: Yes — email contact@lys-sz.com with your typical monthly volume. Tray and tube quantities are stocked.
