About the Product

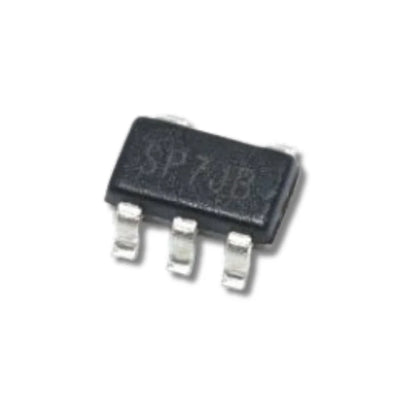

SP7KC SGM2036-1.8YN5G/TR - Low Dropout Voltage Regulator
Introducing the SP7KC SGM2036-1.8YN5G/TR Low Dropout Voltage Regulator, a high-performance component designed for efficient power regulation in mining applications. This voltage regulator, with a voltage output of 1.8V, is specifically tailored for use with Antminer S19 series and T17 series hash boards.
Low Noise | Low Voltage | High Efficiency
The SGM2036 is a low noise, low voltage, and low dropout voltage linear regulator. It provides a stable and reliable power supply with an output current of 300mA. With a typical dropout voltage of only 165mV, it ensures efficient power delivery.
The SGM2036 features a wide operating input voltage range of 1.6V to 5.5V, allowing flexibility in various applications. The output voltage range is 0.8V to 5.0V, providing versatility for different power requirements. The output voltage accuracy of ±2.5% at +25℃ ensures precise and consistent performance.
SP7KC SGM2036-1.8YN5G/TR Technical Features:
| Feature | Description |
|---|---|
| Input Voltage Range | 1.6V to 5.5V |
| Output Voltage Range | 0.8V to 5.0V |
| Output Current | 300mA |
| Output Voltage Accuracy | ±2.5% at +25℃ |
| Dropout Voltage | Typical 165mV |
| Features | Logic-controlled shutdown, short-circuit current limit, |
| thermal shutdown protection, auto-discharge feature | |
| Operating Temperature Range | -40°C to +85°C |
