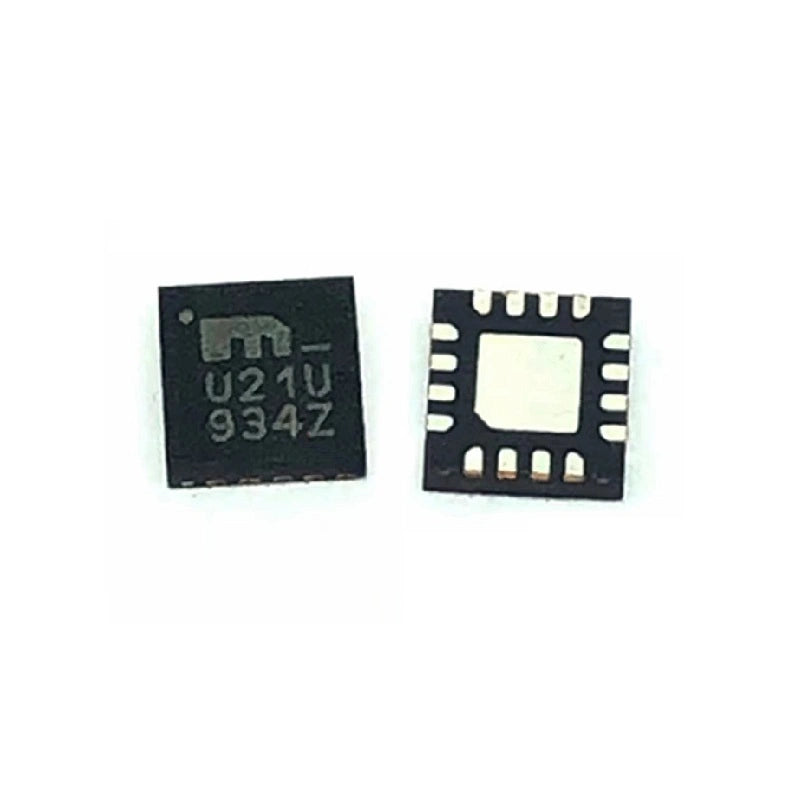

SY58021UMG Precision Clock Buffer for Antminer E9 and E9pro Hash Board Repair

$13.50 USD
$13.50 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

High-Speed Clock Buffer for Antminer E9 E9pro Hash Board Repair - SY58021UMG

Enhance the performance of your Antminer E9 and E9pro hash boards with the SY58021UMG precision clock buffer. This 2.5V/3.3V buffer is specifically designed for Antminer E9 series, providing precise and high-speed clock distribution. With its fully differential 1:4 LVPECL fan-out capability, it generates four identical copies of the output with exceptional consistency, featuring less than 15 ps output deviation out of phase.

Advanced Clock Buffer Solution for Antminer E9 / E9pro Hash Board Repair

The SY58021UMG ensures minimal jitter, with only 70 fsRMS phase jitter (typical), making it ideal for demanding applications. It accepts input signals as low as 100 mV and supports various input types, including LVPECL, LVDS, and CML, with unique input termination and VT pin. The output signal swings compatible with 100K LVPECL, delivering an 800 mV swing.

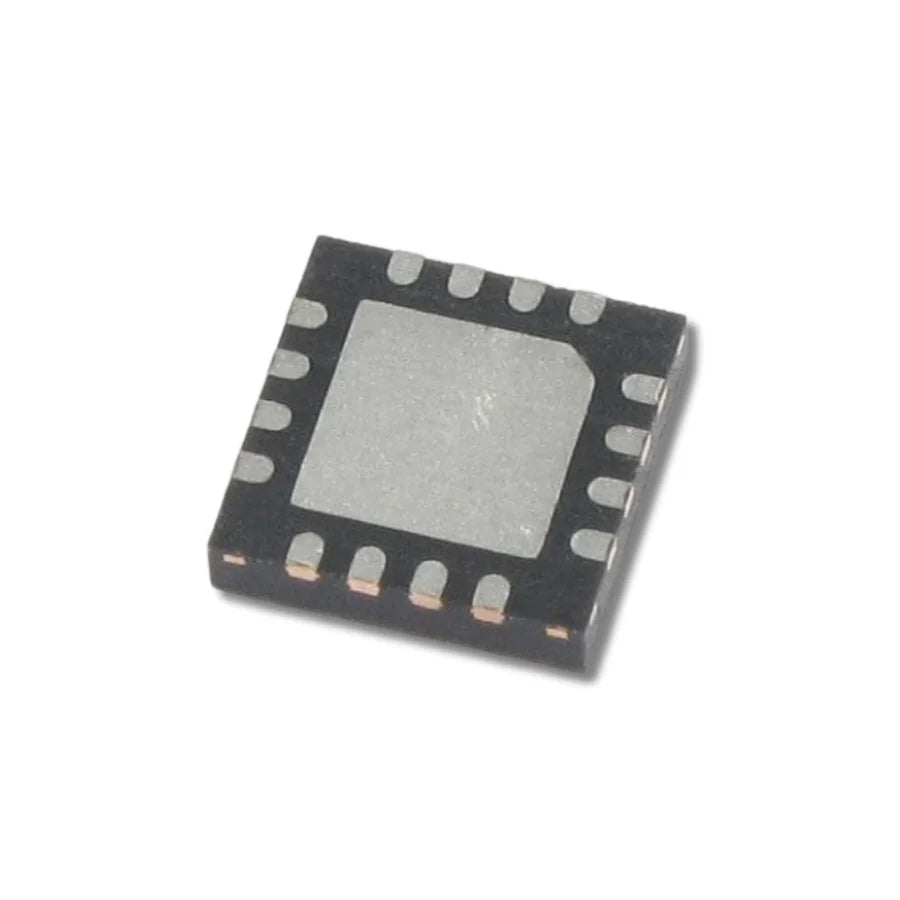

Operating on a 2.5V ±5% or 3.3V ±10% power supply, this clock buffer excels in temperature stability, guaranteeing reliable performance across the entire industrial temperature range of –40°C to +85°C. It comes in a compact 16-lead, 3 mm x 3 mm VQFN package, ensuring easy integration into hash board repair processes.



Technical Features Table:

Features Specifications
Clock Buffer Type Precision 1:4 LVPECL fan-out buffer
Jitter Performance Low (70 fsRMS phase jitter, typical)
Input Signal Compatibility LVPECL, LVDS, CML
Input Signal Voltage Range as low as 100 mV
Output Signal Swing 100K LVPECL compatible, 800 mV
Power Supply 2.5V ±5% and 3.3V ±10%
Temperature Range –40°C to +85°C
Package 16-lead, 3 mm x 3 mm VQFN
