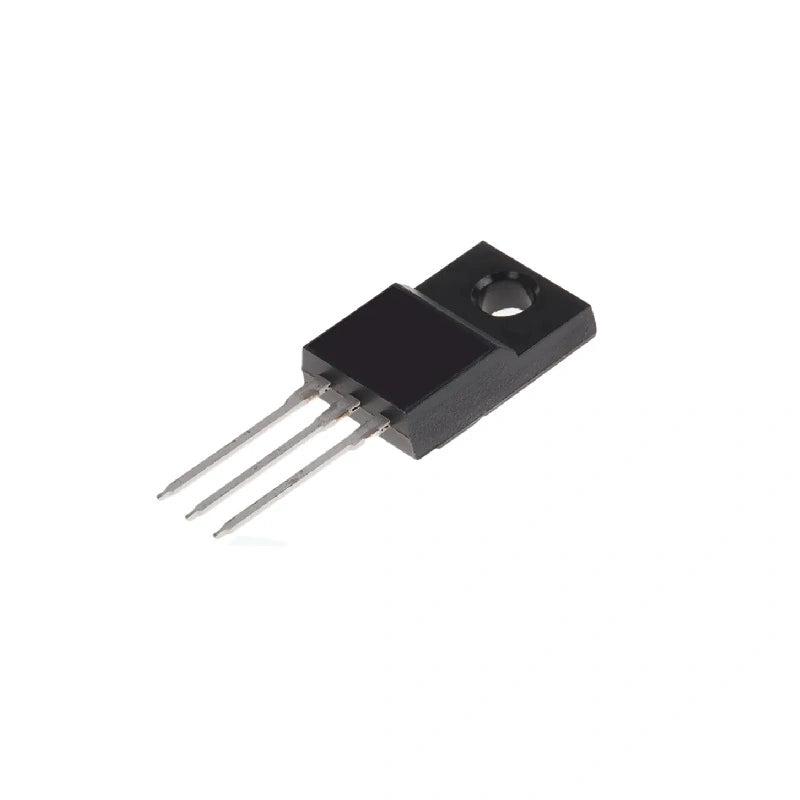

TK20A60W5 Silicon 600V 20A N-Channel MOSFET for Switching Voltage Regulators
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
TK20A60W5 MOSFET - N-Channel Silicon Power MOSFET for Switching Voltage Regulators
The TK20A60W5 MOSFET is a high-performance N-channel silicon power MOSFET designed specifically for switching voltage regulators. With its advanced features and robust design, this MOSFET offers exceptional performance and reliability in various applications.
Upgrade Your Switching Voltage Regulators with TK20A60W5 MOSFET
Featuring the DTMOS (Double-diffused MOS) technology, the TK20A60W5 offers fast reverse recovery time (trr) of 110 ns (typ.) and low drain-source on-resistance (RDS(ON)) of 0.15 Ω (typ.). The Super Junction Structure of DTMOS enables efficient power handling and enhances overall performance.
Reliable N-Channel Silicon Power MOSFET for Efficient Voltage Regulation
Controlling the gate switching is easy with this MOSFET, thanks to its enhancement mode and a gate threshold voltage (Vth) range of 3 to 4.5 V (VDS = 10 V, ID = 1 mA). The TK20A60W5 MOSFET ensures reliable operation and efficient power regulation in your voltage regulator circuits.
Technical Features:
| Feature | Details |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 175mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 55 nC @ 10 V |
| Vgs (Max) | ±30V |
