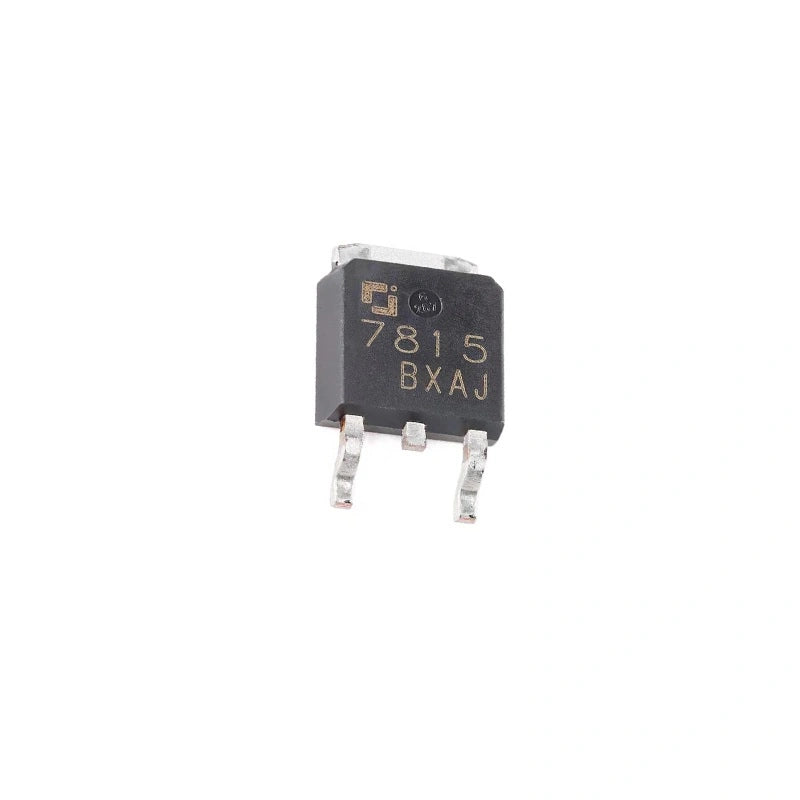

CJ7815 7815 15V 1.5A Three-Terminal Positive Voltage Regulator Chip - Reliable Voltage Regulation for Various Applications

$0.20 USD
$0.20 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

Ensure Stable Operation with the CJ7815 Three-Terminal Positive Voltage Regulator Chip


The CJ7815 is a reliable three-terminal positive voltage regulator chip designed to provide stable voltage regulation in various applications. With its 15V output voltage and maximum output current of 1.5A, this chip is an ideal replacement for faulty components, ensuring the normal and reliable operation of electronic systems.

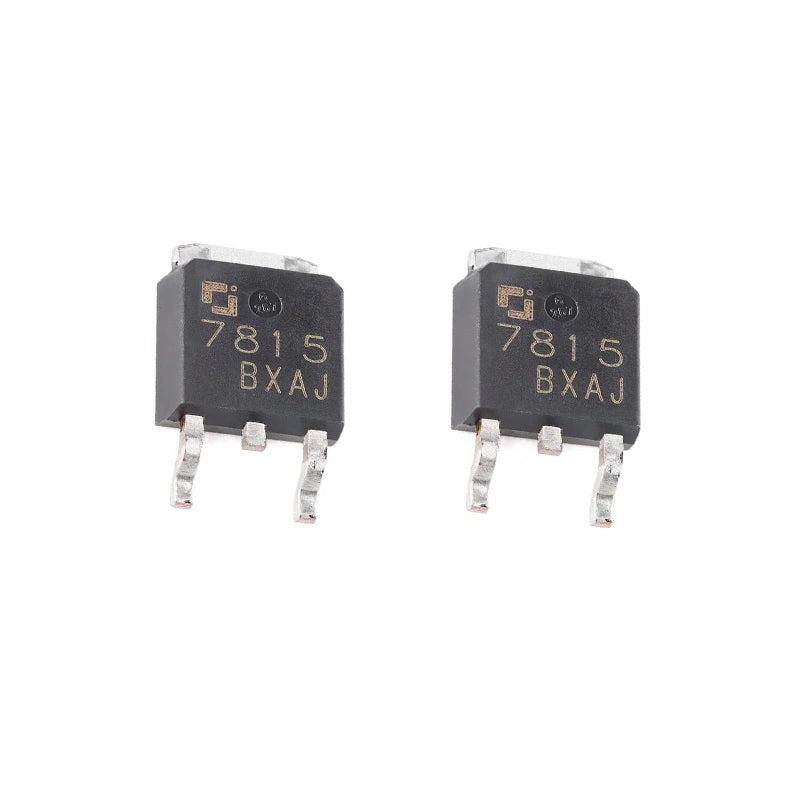

The CJ7815 is marked with the silk screen "7815" for easy identification and integration into existing circuits. Packaged in T0-252-2, it offers convenience and compatibility with standard mounting techniques.

With a maximum output current of 1.5A, the CJ7815 can deliver sufficient power to meet the requirements of a wide range of electronic devices and systems. Its 15V output voltage provides a stable power supply for components and circuits.

Wide Input Voltage Range and High Output Current for Diverse Applications

The CJ7815 operates within a wide input voltage range, accepting up to 35V, making it suitable for applications with varying input voltage levels. This versatility allows the chip to be utilized in different electronic systems, providing consistent voltage regulation.

Featuring an operating junction temperature range of -20°C to +125°C and a storage temperature range of -55°C to +150°C, the CJ7815 is designed to withstand a broad range of temperature conditions, ensuring reliable performance and durability in various environments.

Technical Specifications:

  • Maximum Output Current: 1.5A
  • Output Voltage: 15V
  • Input Voltage: Up to 35V
  • Operating Junction Temperature Range: -20°C to +125°C
  • Storage Temperature Range: -55°C to +150°C
