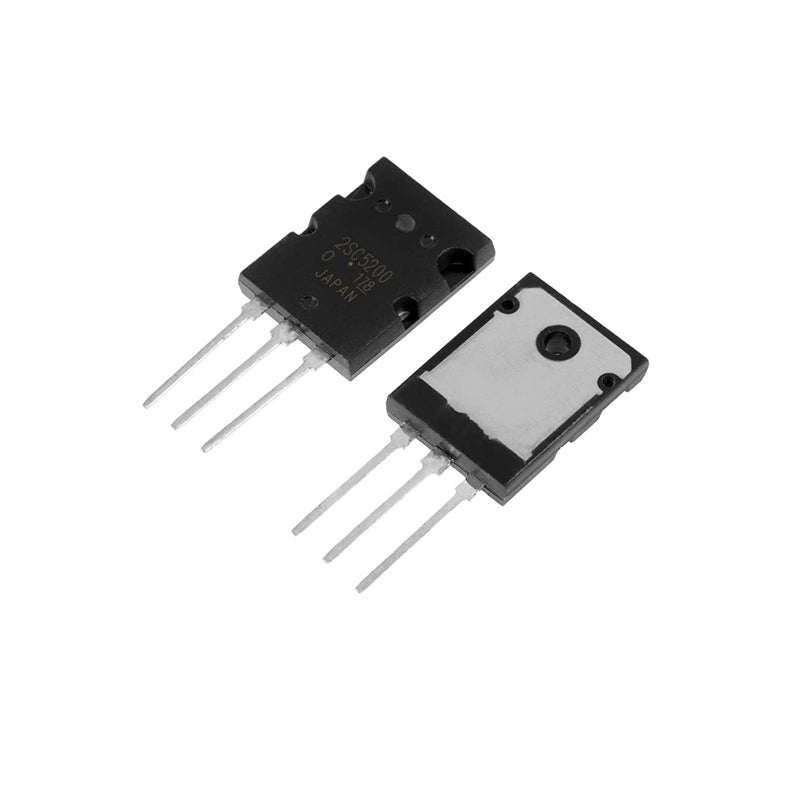

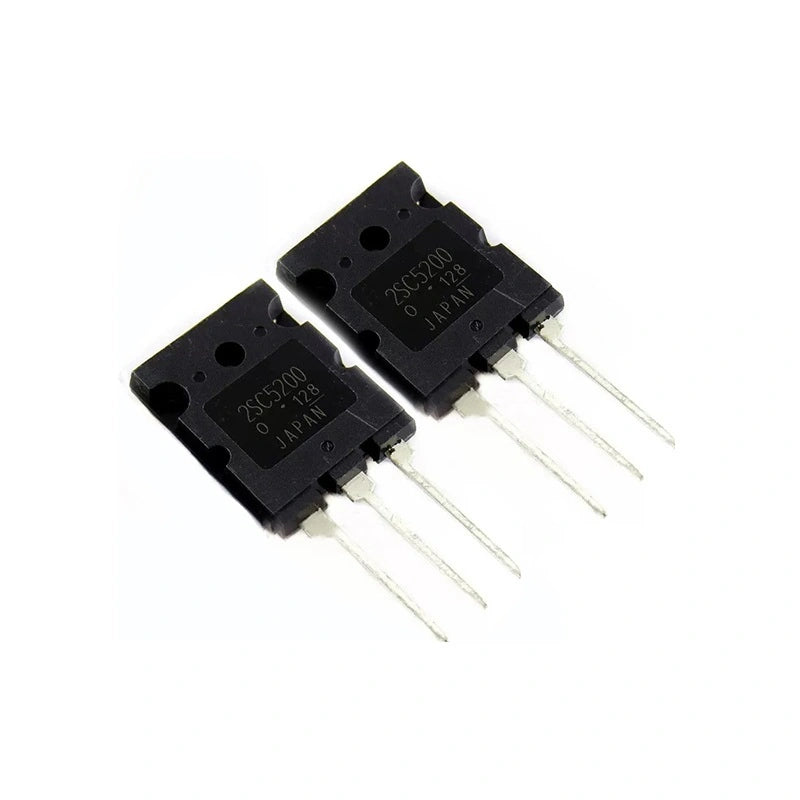

High-Power 2SC5200 NPN Transistor - Ideal for Audio Amplifiers and High-Current Switching

$1.40 USD
$1.40 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

Upgrade Your Amplifier Design with the High-Power 2SC5200 NPN Transistor


The 2SC5200 is a high-power NPN transistor designed for various electronic applications, particularly in audio amplifiers and high-current switching circuits. With a collector-to-emitter voltage (VCE) of 230V and a continuous collector current (IC) of 30A, this transistor delivers robust performance and reliability.

Robust Performance and Versatility for Audio Amplifiers and High-Current Applications

Featuring a complementary counterpart to the 2SA1943, the 2SC5200 offers excellent compatibility in amplifier designs. It is commonly used in audio amplifiers, AF/RF circuits, and low slew rate devices. With its high current switching capability of up to 15A, it is suitable for driving medium power switches and handling high-current loads.

The 2SC5200 is a versatile transistor with a transition frequency of 30MHz, ensuring efficient signal amplification and stability. Its collector-to-base voltage (VCB) is 230V, and the emitter-base voltage (VBE) is 5V, providing ample headroom for various applications.



Technical Features:

Feature Details
Transistor Type NPN
Collector Current (IC) 30A
Collector-Emitter Voltage (VCE) 230V
Collector-Base Voltage (VCB) 230V
Emitter-Base Voltage (VBE) 5V
Transition Frequency 30MHz
Complementary Transistor 2SA1943



Application:

• Audio amplifiers
• AF/RF circuits
• Low slew rate devices
• High current switching (up to 15A) loads
• Medium power switch
