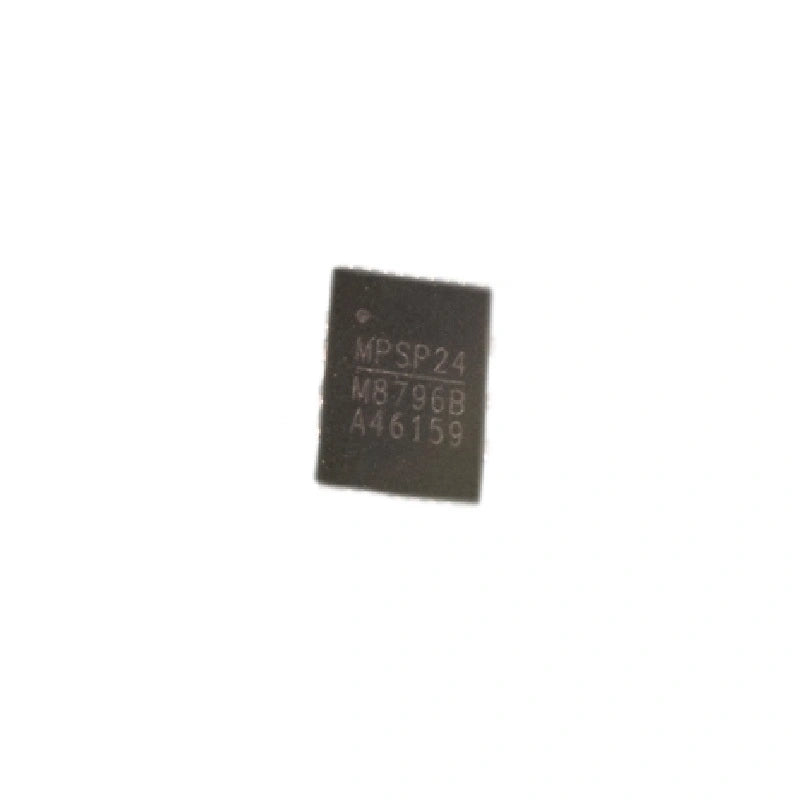

MP8796BGVT M8796B Maintenance Chip - Antminer E9 and E9 Pro Hash Boards
The MP8796BGVT M8796B is a fully integrated, PMBus compatible buck converter designed for the maintenance and repair of Antminer E9 and E9 Pro hash boards. It offers a compact and efficient solution, capable of delivering up to 30A output current per phase, with exceptional load and line regulation across a wide input supply range.
MP8796BGVT Buck Converter - Reliable Power Management for Antminer E9 Series
This maintenance chip provides a range of essential features, including over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP). Its PMBus 1.3 compliance ensures seamless integration and compatibility.
Key Features:
- PMBus 1.3 compliant
- Scalable multi-stage operations
- Wide input supply range (3.1V to 16V with external 3.3V VCC bias, 4V to 16V with internal bias or external 3.3V VCC bias)
- 30A continuous output current per phase
- Low RDS(ON) integrated power MOSFET
- Lossless, accurate on-chip current sensing
- Adaptive COT for ultra-fast transient response
- Stable operation with zero ESR output capacitor
- Exceptional reference voltage stability over a wide temperature range
- True remote sensing of output voltage
- Custom configurations stored in built-in MTP
- Compact TQFN-25 (4mmx5mm) package
Technical Features Table:
Technical Features | |
---|---|
PMBus compliance | 1.3 |
Output current per phase | 30A |
Input supply range | 3.1V to 16V (external 3.3V VCC bias), 4V to 16V (internal bias or external 3.3V VCC bias) |
RDS(ON) integrated power MOSFET | Low |
On-chip current sensing | Accurate |
Transient response | Ultra-fast |
Output voltage range | 0.4V to 0.9 x VIN, up to 5.5V |
Package | TQFN-25 (4mmx5mm) |
