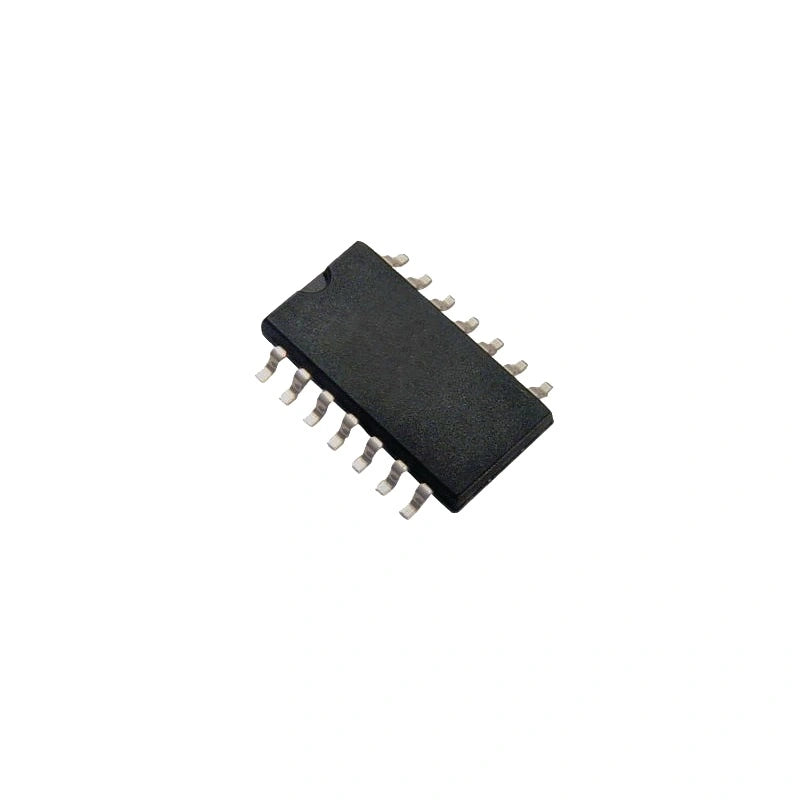

PIC16F1705-I SL Microcontroller MCU 8 bit PIC RISC 14KB Flash 3.3V 5V Automotive 14-Pin for Antminer

$4.95 USD
$4.95 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

Intelligent Analog Integration and Low-Power Performance with PIC16F1705-I/SL MCU


The PIC16F1705-I/SL MCU is an advanced analog flash microcontroller specifically designed for Antminer hash boards and a wide range of general-purpose applications. Packed with innovative features, this 8-bit microcontroller offers intelligent analog integration and extremely low-power (XLP) performance, making it an ideal choice for power-efficient and high-performance systems.

Powerful Features and Efficient Operation for Antminer Hash Board and General-Purpose Applications

With its 14-pin package, the PIC16F1705-I/SL MCU provides a range of powerful features. It offers powerful Op-Amps, Core Independent Peripherals (CLC and COG), Peripheral Pin Select, and Zero-Cross Detect, enabling flexible and efficient system designs. The microcontroller's XLP consumption ensures minimal power usage, extending battery life and reducing overall power requirements.

The PIC16F1705-I/SL MCU belongs to the PIC16 family and features a RISC-based instruction set architecture. With a maximum CPU frequency and clock rate of 32 MHz, it delivers fast and reliable processing capabilities. The microcontroller has an 8-bit data bus width and offers 14KB of program memory, 1KB of RAM, and a single ADC with 8 channels and 10-bit resolution.

Featuring interface options such as I2C, SPI, and USART, the PIC16F1705-I/SL MCU provides versatile connectivity for seamless integration into various systems. It also includes timers, PWM channels, analog comparators, and a watchdog for enhanced functionality and control. The microcontroller operates within a wide voltage range of 2.5V to 5.5V and offers industrial-grade temperature tolerance.



Technical Features Table:

HTS
8542.31.00.01
Family Name
PIC16
Instruction Set Architecture
RISC
Device Core
PIC
Core Architecture
PIC
Maximum CPU Frequency (MHz)
32
Maximum Clock Rate (MHz)
32
Data Bus Width (bit)
8
Program Memory Type
Flash
Program Memory Size
14KB
RAM Size
1KB
Programmability
Yes
Interface Type
I2C/SPI/USART
Number of I/Os
12
No. of Timers
5
Timers Resolution (bit)
8/8/8/8/16
PWM
2
Number of ADCs
Single
ADC Channels
8
ADC Resolution (bit)
10
Number of DACs
Single
Watchdog
1
Analog Comparators
2
Parallel Master Port
No
Real Time Clock
No
Minimum Operating Supply Voltage (V)
2.5
Typical Operating Supply Voltage (V)
5|3.3
Maximum Operating Supply Voltage (V)
3.6|5.5
Maximum Power Dissipation (mW)
800
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Supplier Temperature Grade
Industrial
Packaging
Tube
Pin Count
14
Standard Package Name
SOP
Mounting
Surface Mount
Package Height
1.25(Min)
Package Length
8.65
Package Width
3.9
PCB changed
14
Lead Shape
Gull-wing
