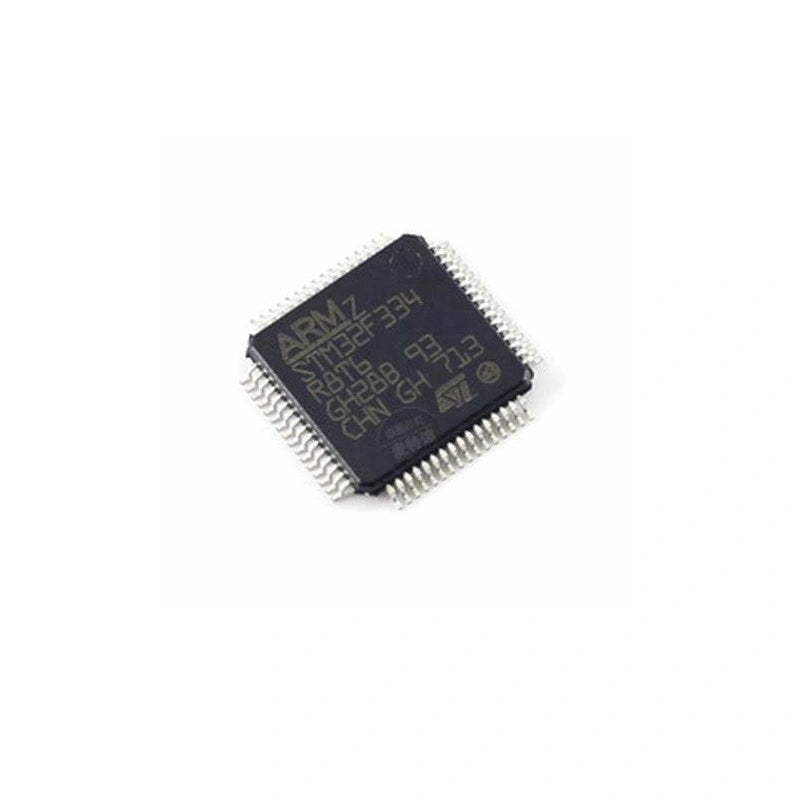

STM32F334R8T6 STM32F3 Microcontroller IC 32-Bit Single-Core 72MHz 64KB 64-LQFP
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
STM32F334R8T6 STM32F3 Microcontroller IC - 32-Bit, 64-LQFP
The STM32F334R8T6 is a powerful microcontroller IC from the STM32F3 series developed by STMicroelectronics. It features a high-performance Arm Cortex-M4 32-bit RISC core operating at speeds of up to 72 MHz, providing efficient and reliable processing capabilities for a wide range of embedded applications.
High-Performance 32-Bit Microcontroller with Arm Cortex-M4 Core
This microcontroller is equipped with an embedded floating-point unit (FPU) and high-speed memory, enabling advanced mathematical calculations and efficient data handling. The STM32F334R8T6 also offers enhanced I/O and peripherals, including two fast 12-bit analog-to-digital converters (ADCs) with a conversion speed of 5 Msps, up to three ultra-fast comparators, one operational amplifier, three digital-to-analog converter (DAC) channels, a low-power Real-Time Clock (RTC), and multiple timers for various purposes.
Enhanced I/O and Peripherals for Embedded Applications
With an operating temperature range of -40°C to 85°C or -40°C to 105°C (depending on the specific variant), the STM32F334R8T6 can withstand harsh environmental conditions. It operates on a supply voltage range of 2.0V to 3.6V, providing flexibility in power requirements.
STM32F334R8T6 Features Table:
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM32F3 |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 51 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 21x12b; D/A 3x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Base Product Number | STM32F334 |
