RT6212AHGJ6F Synchronous Step-Down DC-DC Converter | 2A Buck Replacement for Avalon A850 Control Board Repair
The RT6212AHGJ6F is a high-efficiency synchronous step-down (buck) DC-DC converter used on the Avalon A850 control board. Derives one of the local low-voltage rails from a higher upstream supply — when this rail dies, the control board's logic stops responding, the miner shows "no chain" or a dead control surface, and the hashboards never come up even though they are healthy.
Wide input range 4.5V to 18V, up to 2A continuous output current, fixed 500kHz switching frequency, and ACOT (Advanced Constant-On-Time) control architecture for fast transient response with near-constant frequency. Integrated MOSFETs (163mΩ high-side / 86mΩ low-side) eliminate the external FET-pair BOM and keep the rework footprint to the TSOT-23-6 package alone.
When to Replace the RT6212AHGJ6F
- Avalon A850 control board rail dead — measure VOUT, confirm short to GND or open.
- Control board boots intermittently — converter entering UVLO / hiccup mode under load.
- Visible damage on the TSOT-23-6 package — burnt or cracked after a downstream short.
- Hashboards detected but miner won't start mining — local logic rail under-spec'd, control board misbehaving.
- Excessive heat on the IC at normal load — integrated MOSFETs degraded, RDS(on) climbing.
RT6212AHGJ6F Specifications
| Parameter | Specification |
|---|---|
| Part Number | RT6212AHGJ6F |
| Function | Synchronous step-down (buck) DC-DC converter |
| Output Current | Up to 2A |
| Input Voltage Range | 4.5V to 18V |
| Switching Frequency | 500 kHz (fixed) |
| Control Architecture | ACOT (Advanced Constant-On-Time) |
| Integrated MOSFETs | High-side 163mΩ / Low-side 86mΩ |
| Startup | Internal, pre-biased output support |
| Protections | Input UVLO, OCP with hiccup mode, thermal shutdown |
| Package | TSOT-23-6 (surface mount) |

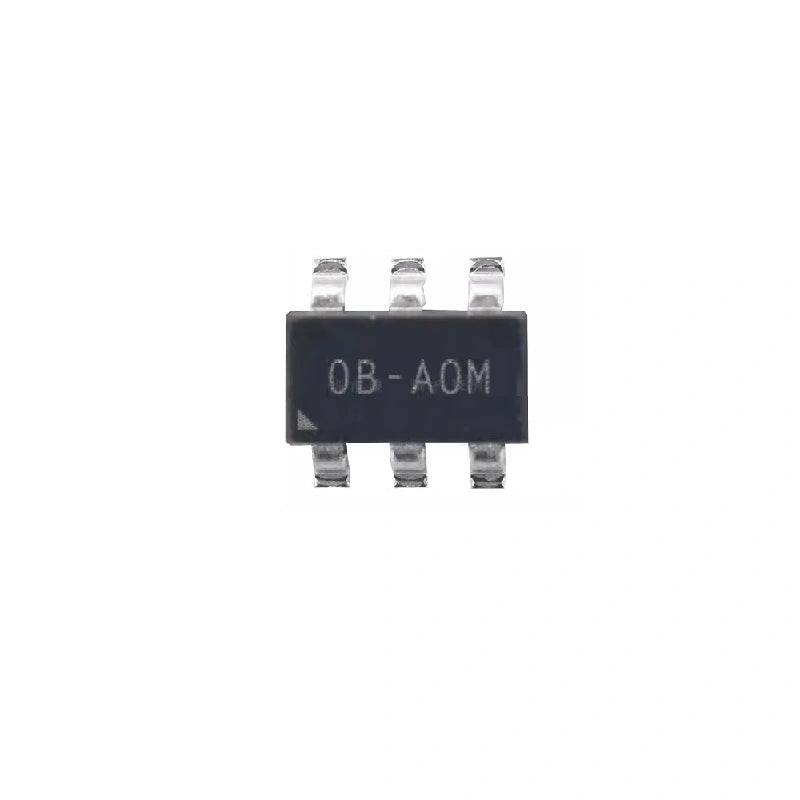

| Marking | 0B = *** (batch-dependent) |
| Typical Applications | Avalon A850 control board, routers, set-top boxes, portable electronics |
| Condition | Brand New |
FAQ — RT6212AHGJ6F
Q: How do I confirm the converter is the dead part?
A: Power off. Probe VOUT to GND — short reading means downstream short caused the failure (find and fix the short before re-energising). OL reading means the converter is open. Lift the IC, re-measure the load: if the short is gone, the IC died protecting the load; if still shorted, replace the load first.
Q: 2A output — does that match the load?
A: Control-board local rails typically pull a few hundred mA — well within the 2A envelope. If you're seeing the IC run hot at idle, suspect either a degraded part or an unintended high-current load — investigate before assuming the rated 2A is the issue.
Q: TSOT-23-6 rework profile?
A: Bottom-side preheat 100°C, top-side hot air 320°C with flux paste. The small thermal mass of the TSOT-23-6 reflows quickly — avoid prolonged hot-air dwell which damages adjacent passives.
Q: Bulk pricing for Avalon control board repair benches?
A: Yes — email contact@lys-sz.com for reel-quantity pricing on RT6212AHGJ6F stock.
