SGM452TS8 Digital Temperature Sensor Chip ASIC Miner Hashboard Repair
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

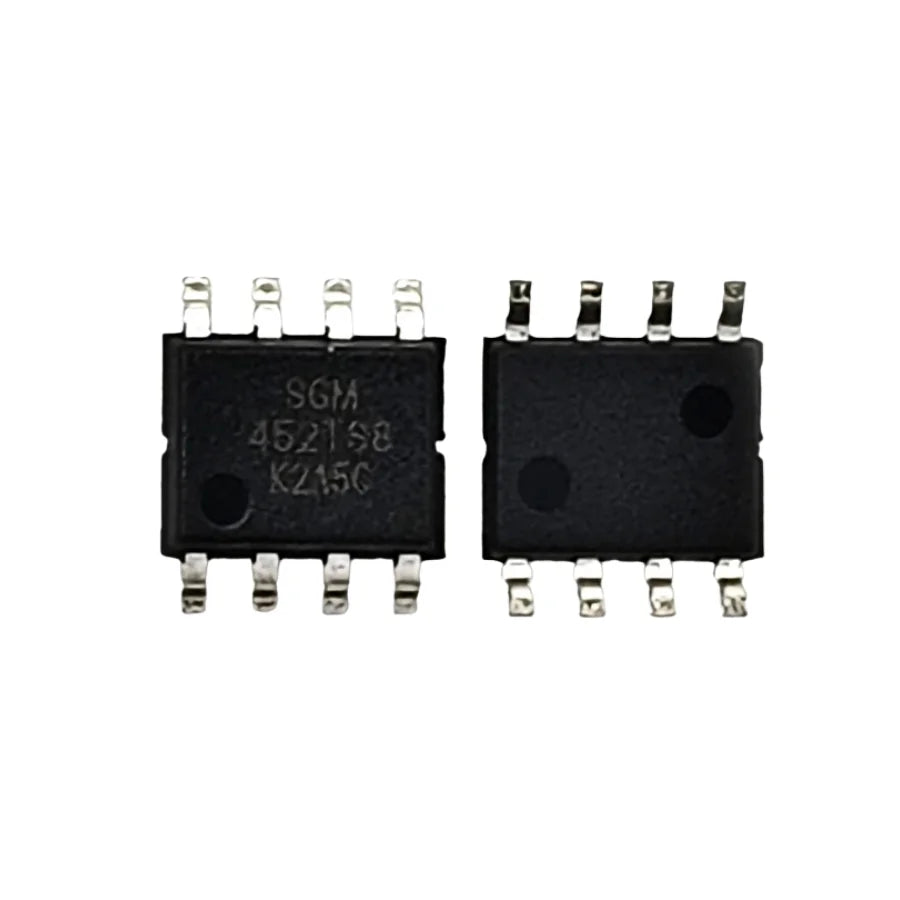

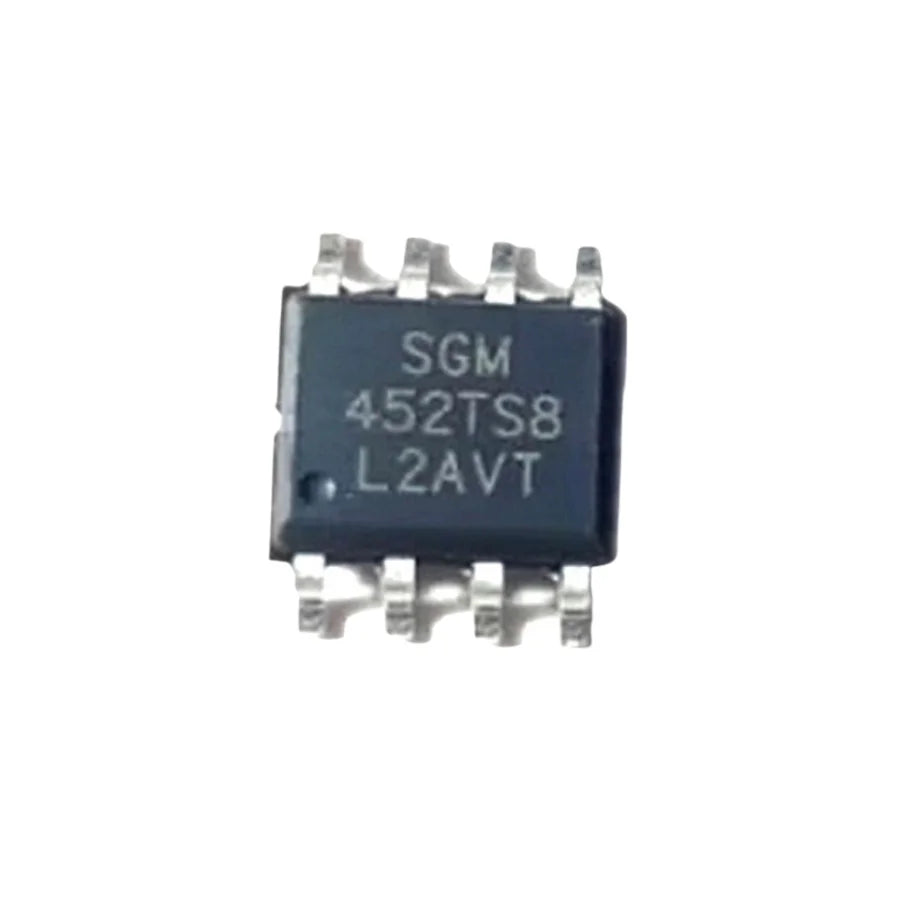

SGM452TS8 Digital Temp Sensor IC for ASIC Miner Hashboards
The SGM452TS8 is a digital temperature sensor IC with I²C interface used on ASIC miner hashboards to monitor operating temperature and feed the fan-control / thermal-throttling loops. Sigma-delta ADC and a wide measurement range make it a drop-in fix when the original sensor goes deaf and the miner reports nonsense temperature values.
Accuracy is ±1°C up to +85°C and ±1.2°C up to +125°C over a full -55°C to +125°C range. Low power consumption + shutdown mode + no external components keep PCB rework minimal — desolder, reflow, recalibrate.
Typical Failure Modes Solved
- Bogus temperature readings — miner logs report 0°C or 125°C constantly.
- Thermal-throttle stuck on — control board derates hashboard incorrectly.
- Sensor not responding on I²C bus — chip dead after a thermal event.
- Production refurbishment — bulk sensor stock for hashboard rework lines.
SGM452TS8 Specifications
| Parameter | Specification |
|---|---|
| Part Number | SGM452TS8 |
| Function | Digital temperature sensor IC |
| Interface | I²C |
| ADC | Sigma-delta |
| Accuracy | ±1°C (-20°C to +85°C) / ±1.2°C (-55°C to +125°C) |
| Range | -55°C to +125°C |
| Power | Low + shutdown mode |
| External Components | None required |
| Condition | Brand New |
FAQ — SGM452TS8 Temp Sensor
Q: How to confirm the sensor is dead before swapping?
A: Probe SCL / SDA on the I²C bus, read the device address, and dump the temperature register. If the chip doesn't ACK, it's dead. If it reports a constant value, it's frozen.
Q: Substitution with other I²C temp sensors?
A: Functionally similar parts exist (LM75, TMP75, etc.) but each has its own I²C address and register map. For OEM-spec hashboard repair, stick with SGM452TS8.
Q: Bulk pricing?
A: Yes — email contact@lys-sz.com.
