SMAJ5.0A AE High-Performance Diode for Avalon 850 Control Board Replacement
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product

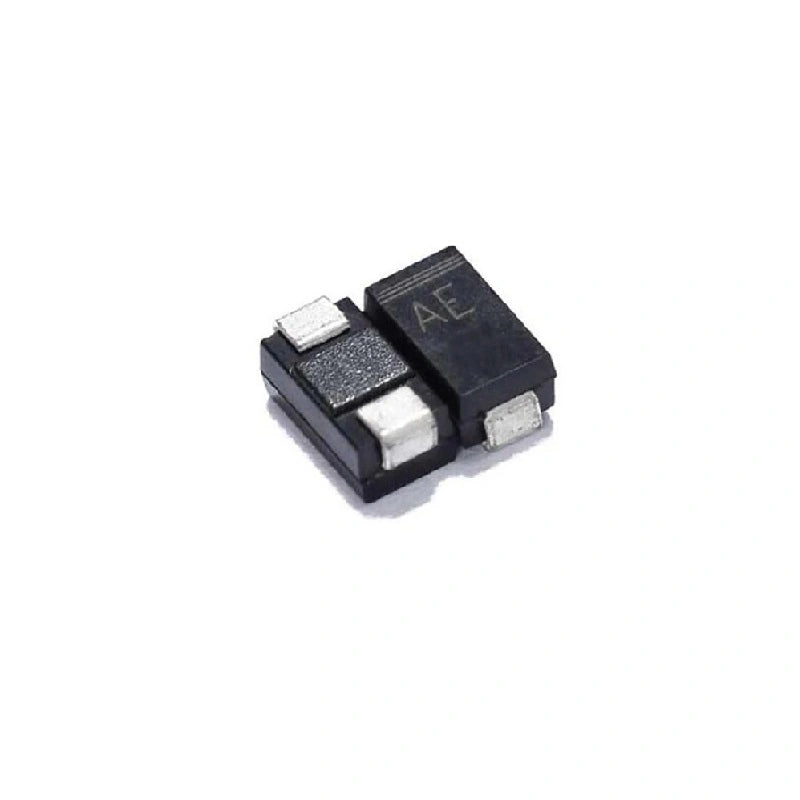

SMAJ5.0A AE Diode Replacement for Avalon Miner 850 Control Board
The SMAJ5.0A AE diode is specifically designed to safeguard sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Packaged in DO-214AC with the silk screen mark AE, this diode is a common replacement component for the Avalon 850 control board.
Reliable and Fast-Acting SMAJ5.0A AE Diode for Voltage Transient Protection
Featuring a fast response time and low incremental surge resistance, the SMAJ5.0A AE diode provides robust protection against voltage spikes and surges. Its matte tin lead-free plating ensures high-quality and environmentally friendly performance, complying with RoHS standards.
With a typical leakage current of less than 1pA above 10V, this diode ensures minimal power loss while efficiently clamping transient voltages. Its compatibility with the industrial standard package DO-214AC makes it suitable for surface-mounted applications, optimizing board space.
SMAJ5.0A AE Technical Features:
| Feature | Details |
|---|---|
| Response Time | Fast |
| Incremental Surge Resistance | Low |
| Plating | Matte tin lead-free |
| Compliance | Halogen-free, RoHS |
| Leakage Current | Typical IR < 1pA above 10V |
| Package | DO-214AC |
| Peak Pulse Power Capability | 400W at 10/1000s waveform, duty cycle: 0.01% |
| High-Temperature Soldering | 260°C/40 seconds at terminals |
