TPA1862-VR High-Supply Voltage Amplifier for ASIC Miner PSU Repair
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

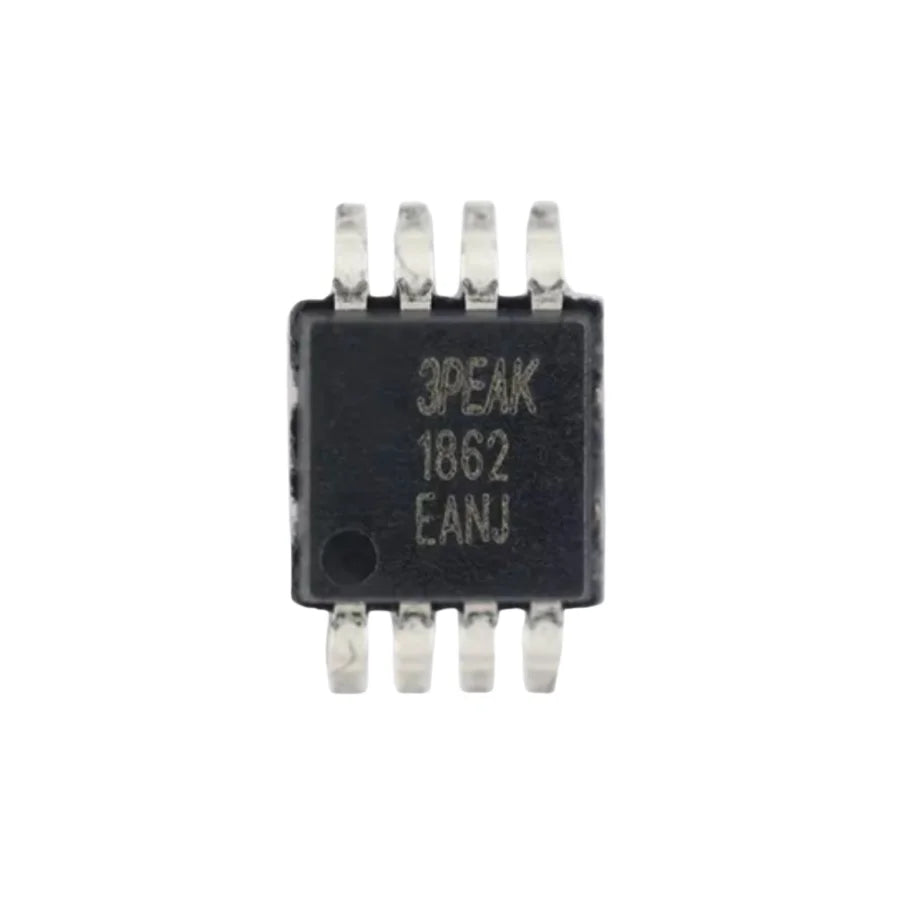

TPA1862-VR High-Supply Voltage Amplifier for ASIC Miner Power Supply
The TPA1862-VR is a high-performance high-supply voltage operational amplifier designed for precise signal conditioning and control circuits in ASIC miner power supplies. It is commonly used during APW11 power supply maintenance and repair, where stability, noise immunity, and thermal protection are critical.
Reliable Amplifier Solution for ASIC Miner PSU Maintenance
Operating across a wide 4.5V to 36V supply range, the TPA1862-VR delivers excellent AC performance with a 12MHz bandwidth and 12V/μs slew rate. Its strong EMI rejection of 85dB at 1GHz ensures stable operation in electrically noisy mining environments.
The integrated over-temperature protection automatically places the amplifier in a high-impedance state at 170°C and restores normal operation at 150°C, protecting the device during prolonged high-load operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Supply Voltage | 4.5V – 36V |
| Input Offset Voltage | ±30µV max |
| Bandwidth | 12 MHz |
| Slew Rate | 12 V/µs |
| Quiescent Current | 2000 µA |
| EMI Rejection | 85 dB @ 1 GHz |
| Over-Temperature Protection | Yes (170°C shutdown / 150°C recovery) |
| ESD & Latch-Up Protection | 2 kV HBM, 1 kV CDM, 500 mA latch-up |
| Operating Temperature | -40°C to +125°C |
Key Advantages
- Wide operating voltage range suitable for PSU control circuits
- High EMI immunity for noisy mining power environments
- Fast response and stable amplification
- Built-in thermal protection for long-term reliability
- Ideal for professional ASIC miner PSU repair
Typical Applications
- Bitmain APW11 power supply maintenance
- ASIC miner PSU feedback and control circuits
- High-voltage industrial analog signal conditioning
- Power management and monitoring circuits
